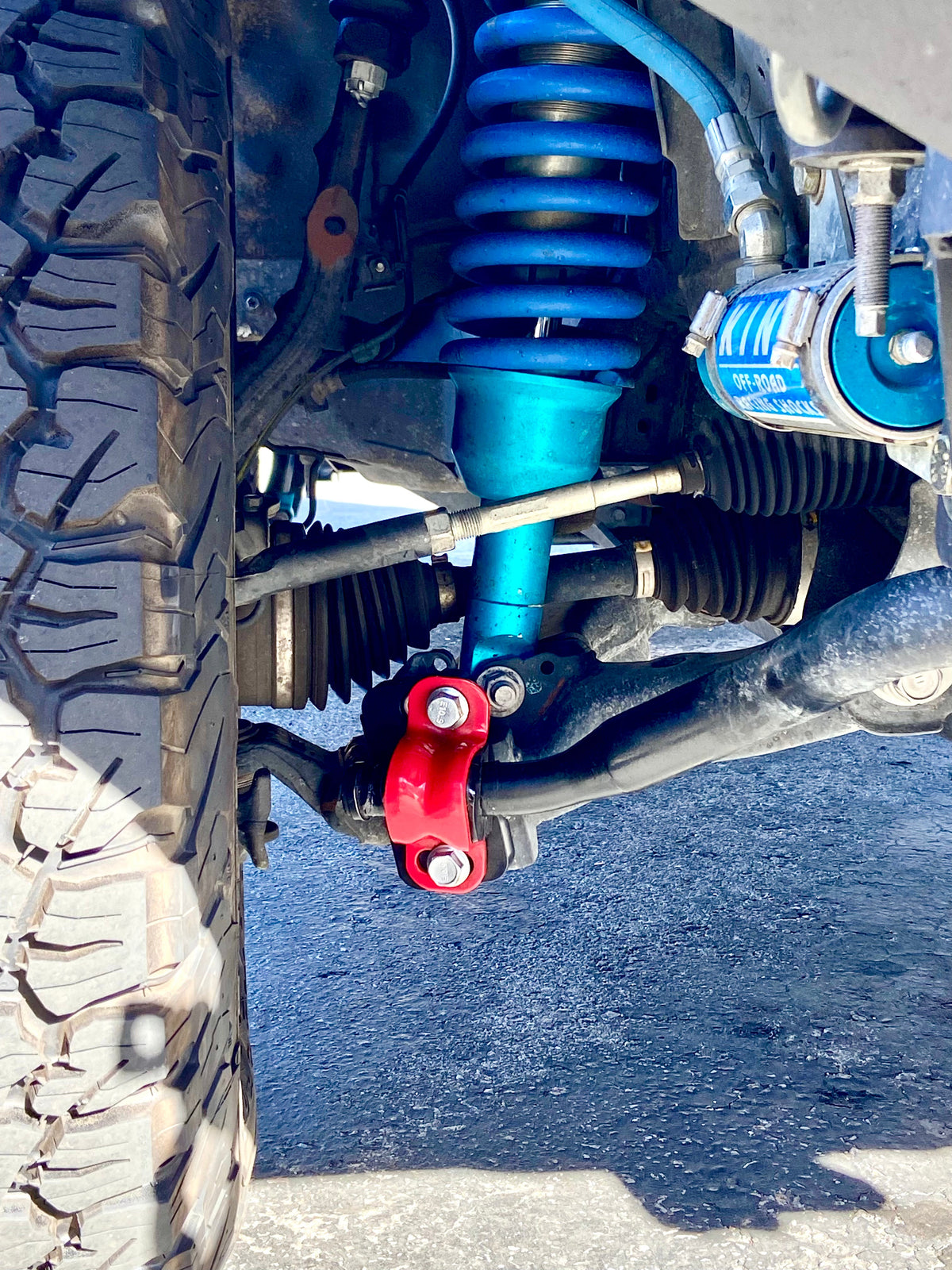

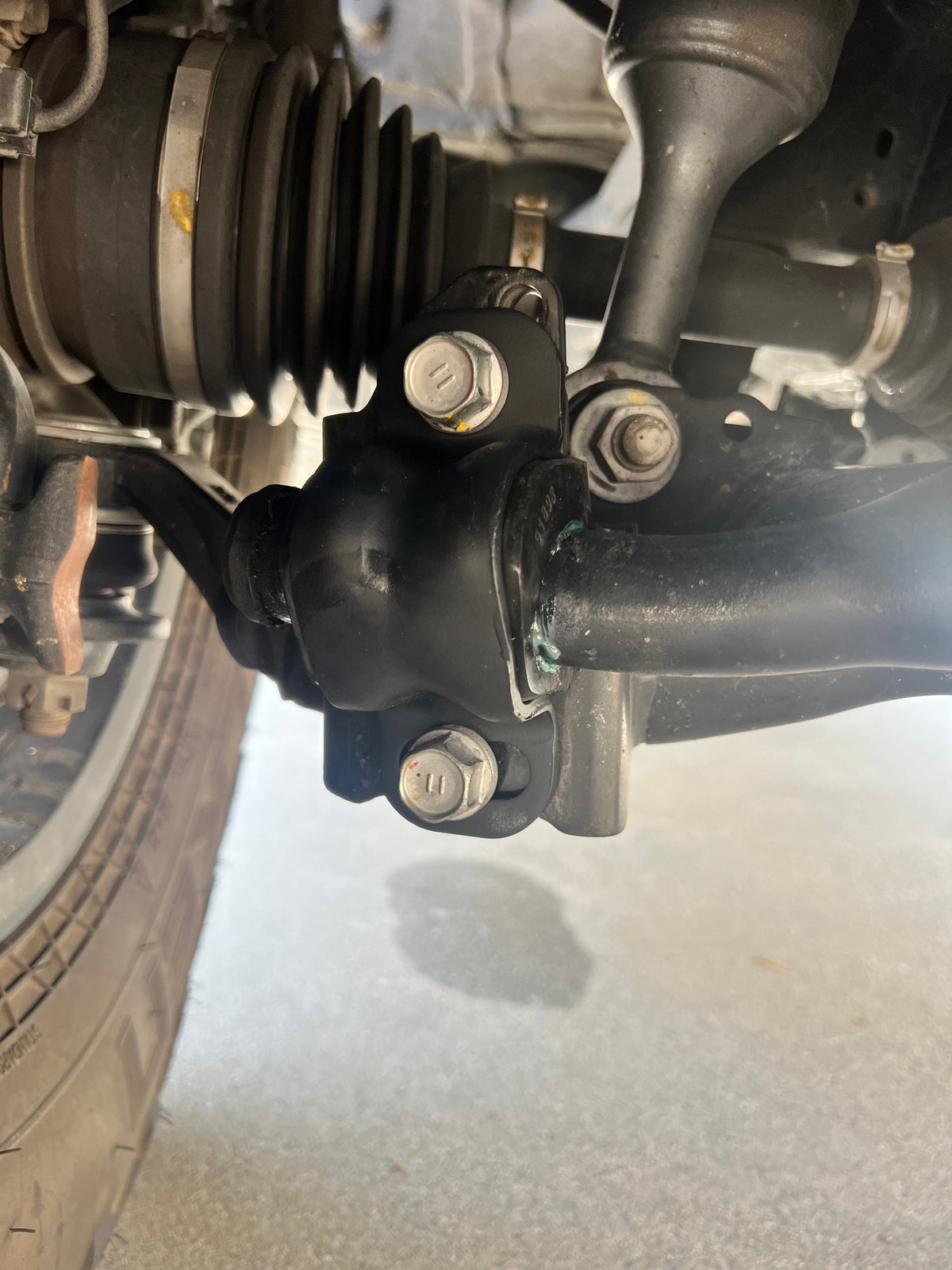

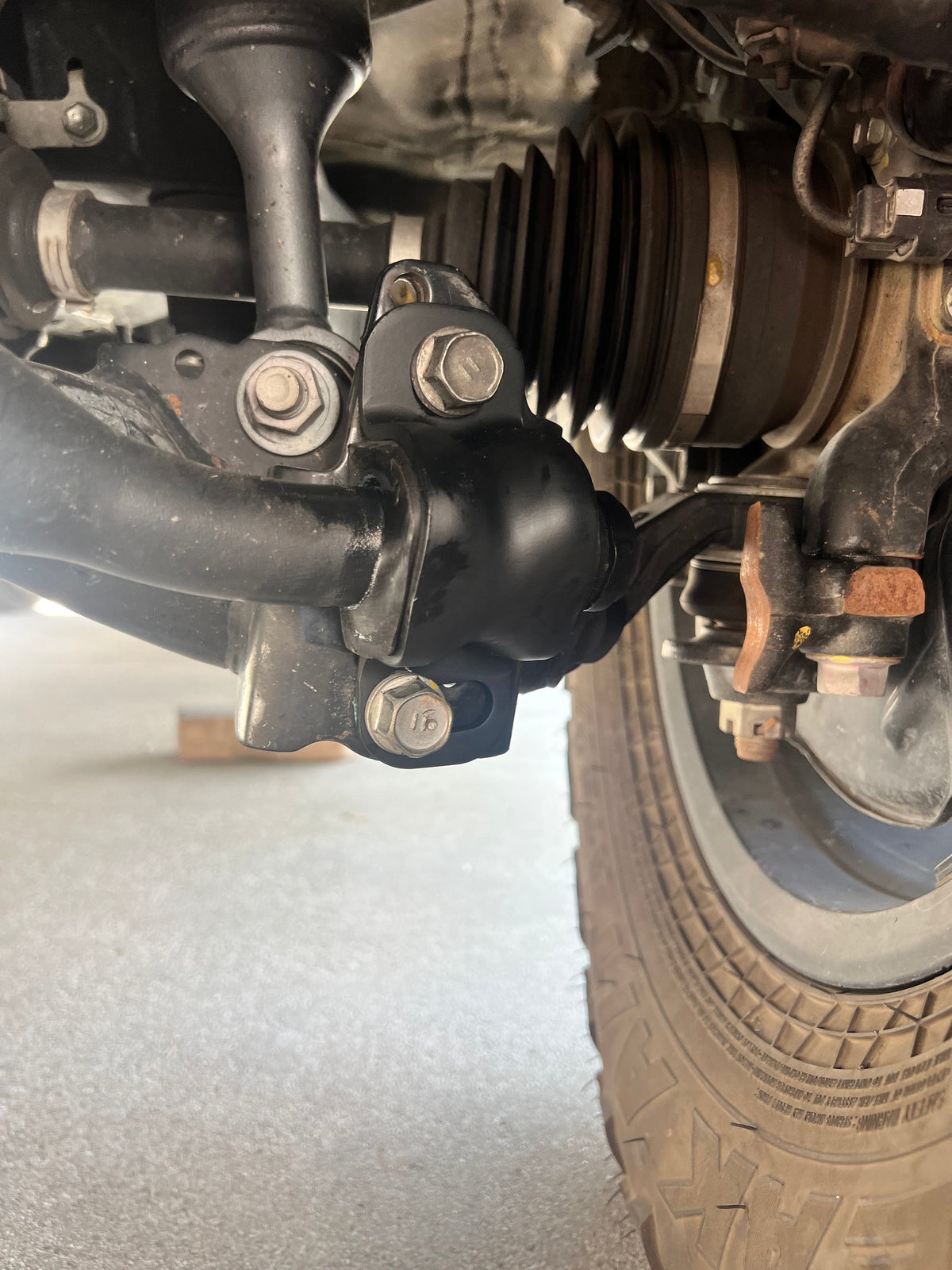

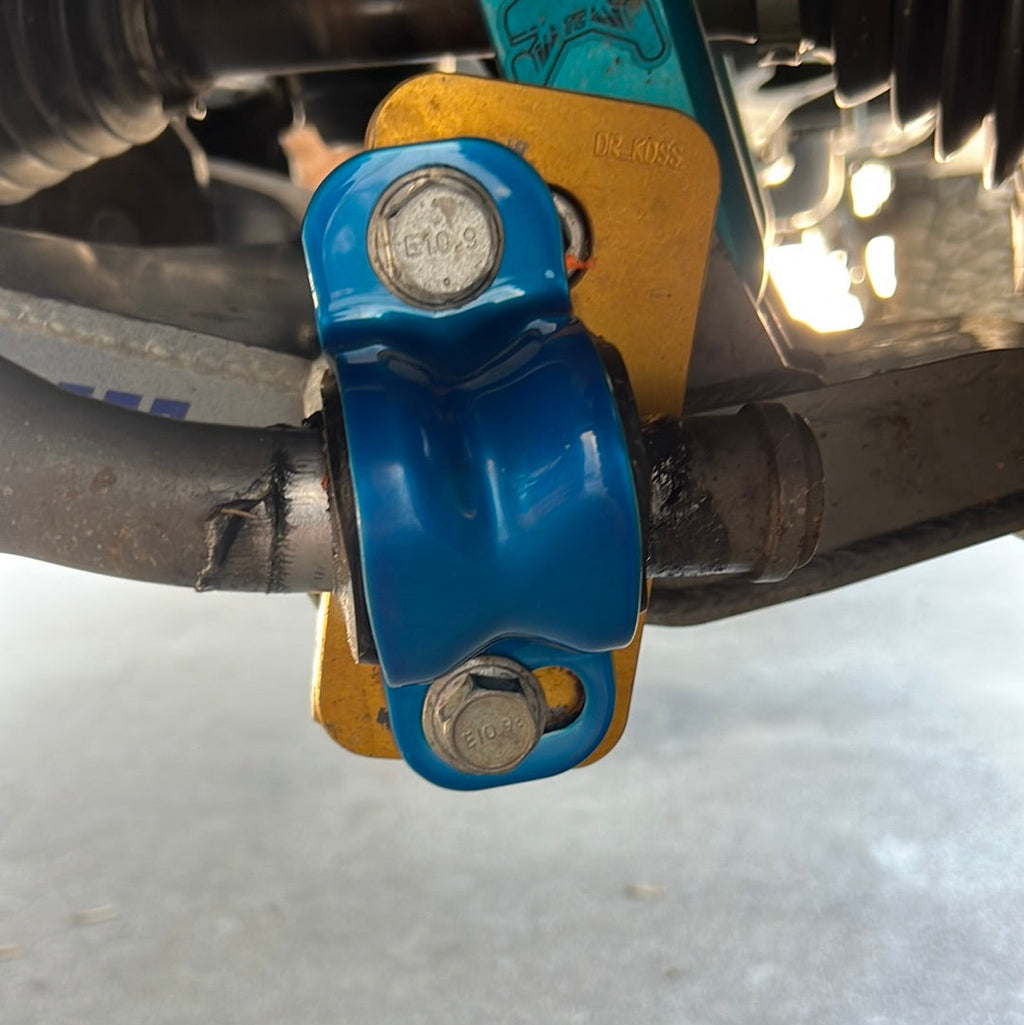

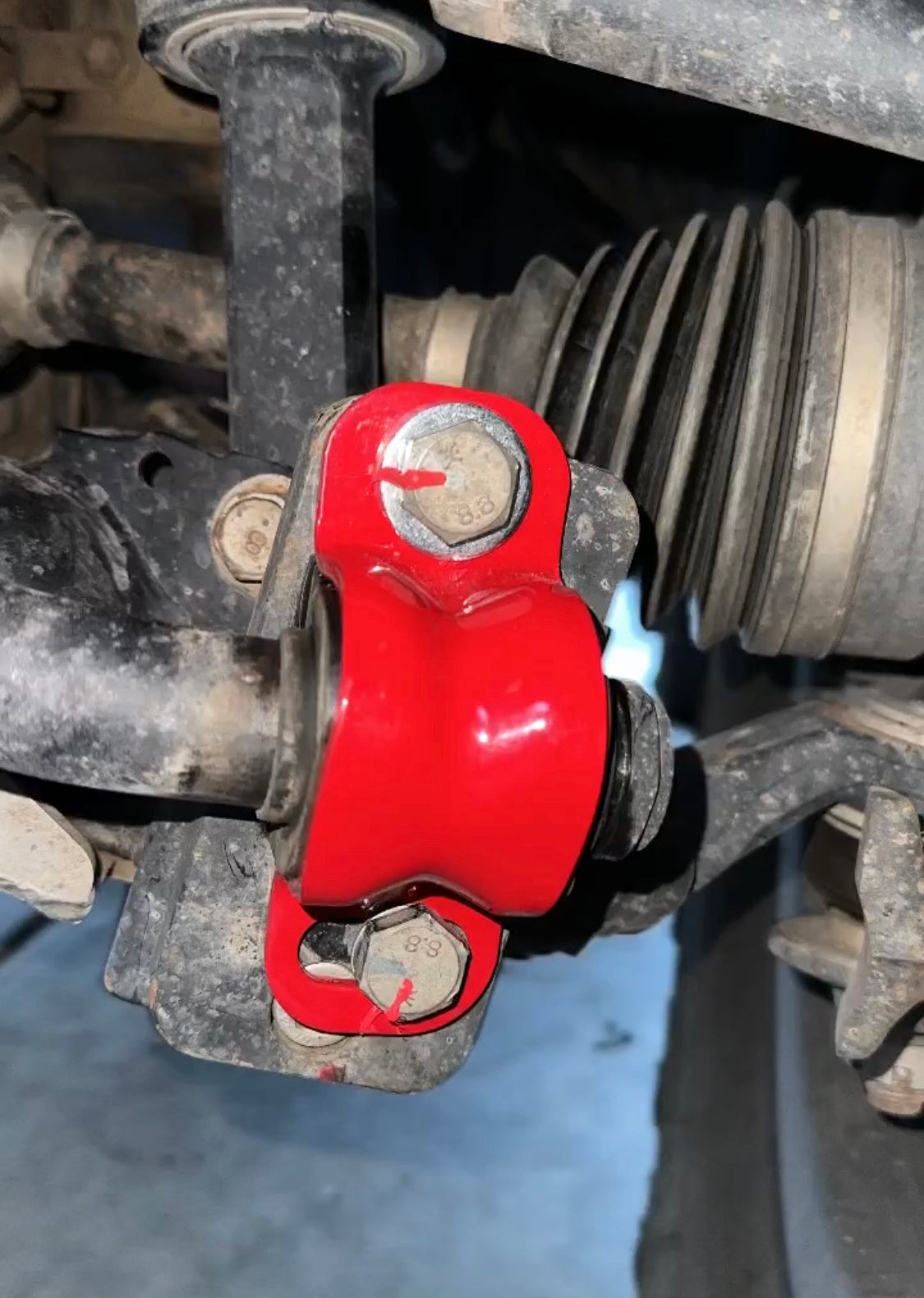

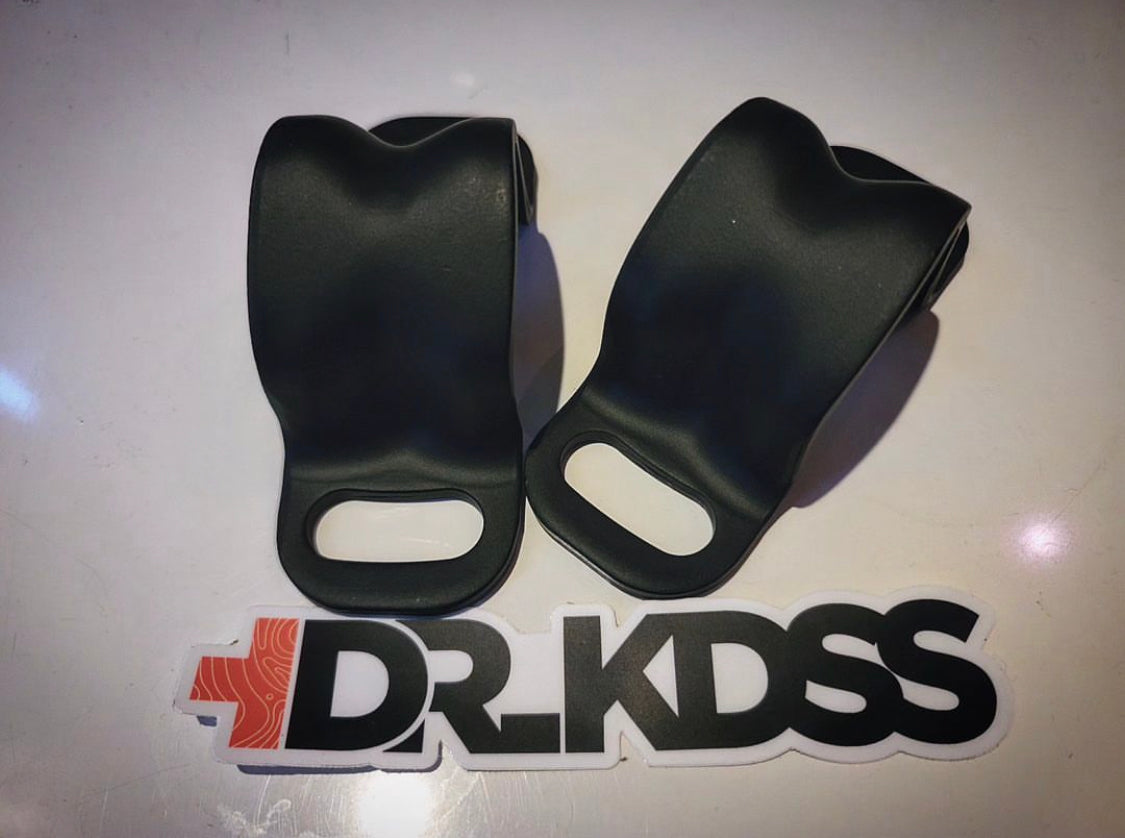

Dr KDSS Front KDSS Sway Bar Bushing Brackets (Pair) | 2010-2024 4Runner, GX460 & GX470

Lift a KDSS-equipped 4Runner or GX more than about 2" and the front sway bar bushings start to bind. These adjustable CNC-machined brackets correct the bushing angle so the bar slides and cycles smoothly — no bind, no premature bushing wear, and a smoother ride. Fits 2010+ 4Runner, GX460 and Prado 150 with KDSS; also fits the GX470 when paired with Dr KDSS Front Sway Bar End Adapters.

Features

• Corrects front KDSS bushing angle caused by lifts
• Eliminates sway bar bushing bind so the bar cycles freely
• Adjustability the factory brackets never offered

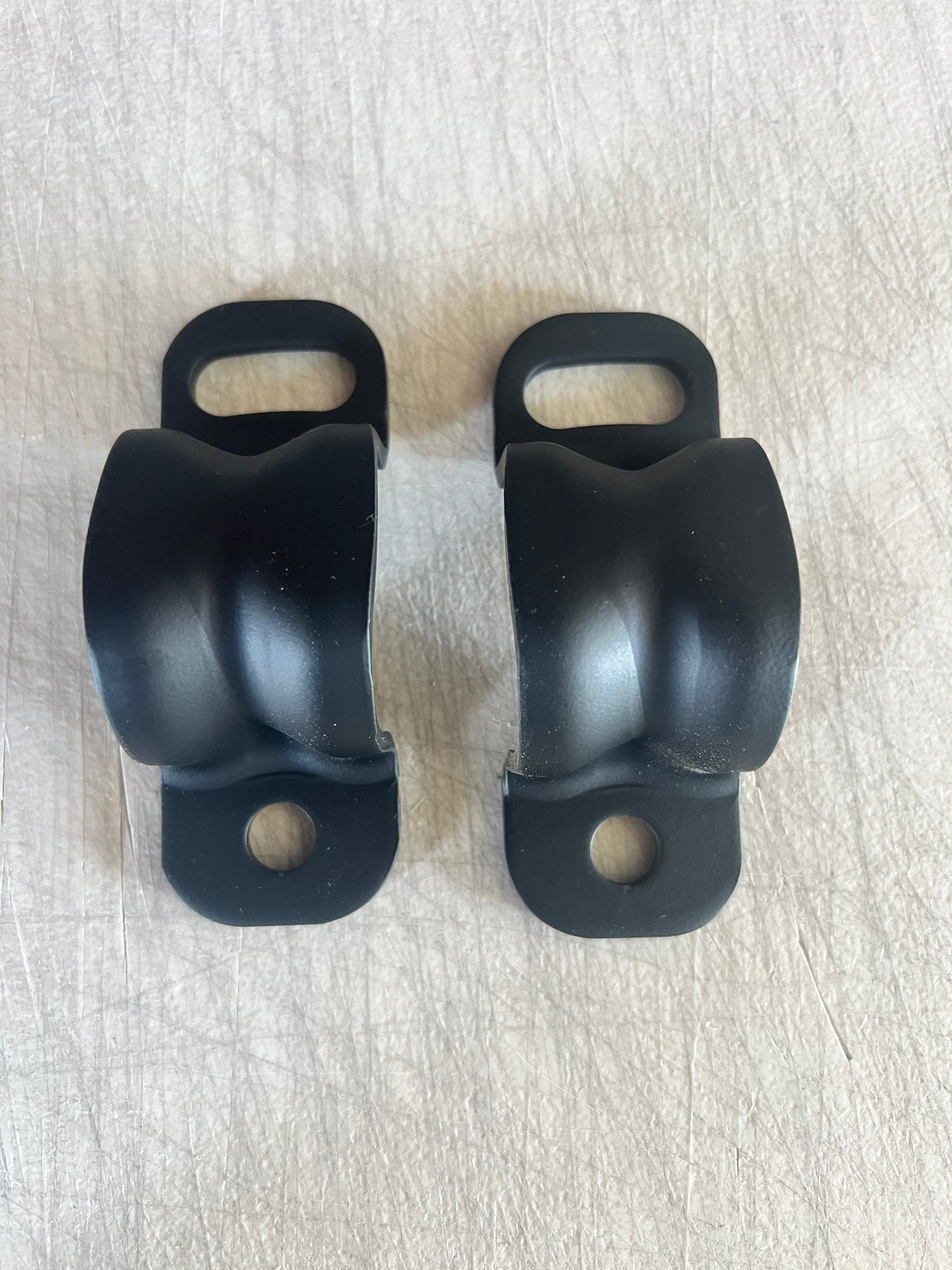

• Slotted mounting holes make installation and maintenance easier
• Works with OEM or polyurethane bushings

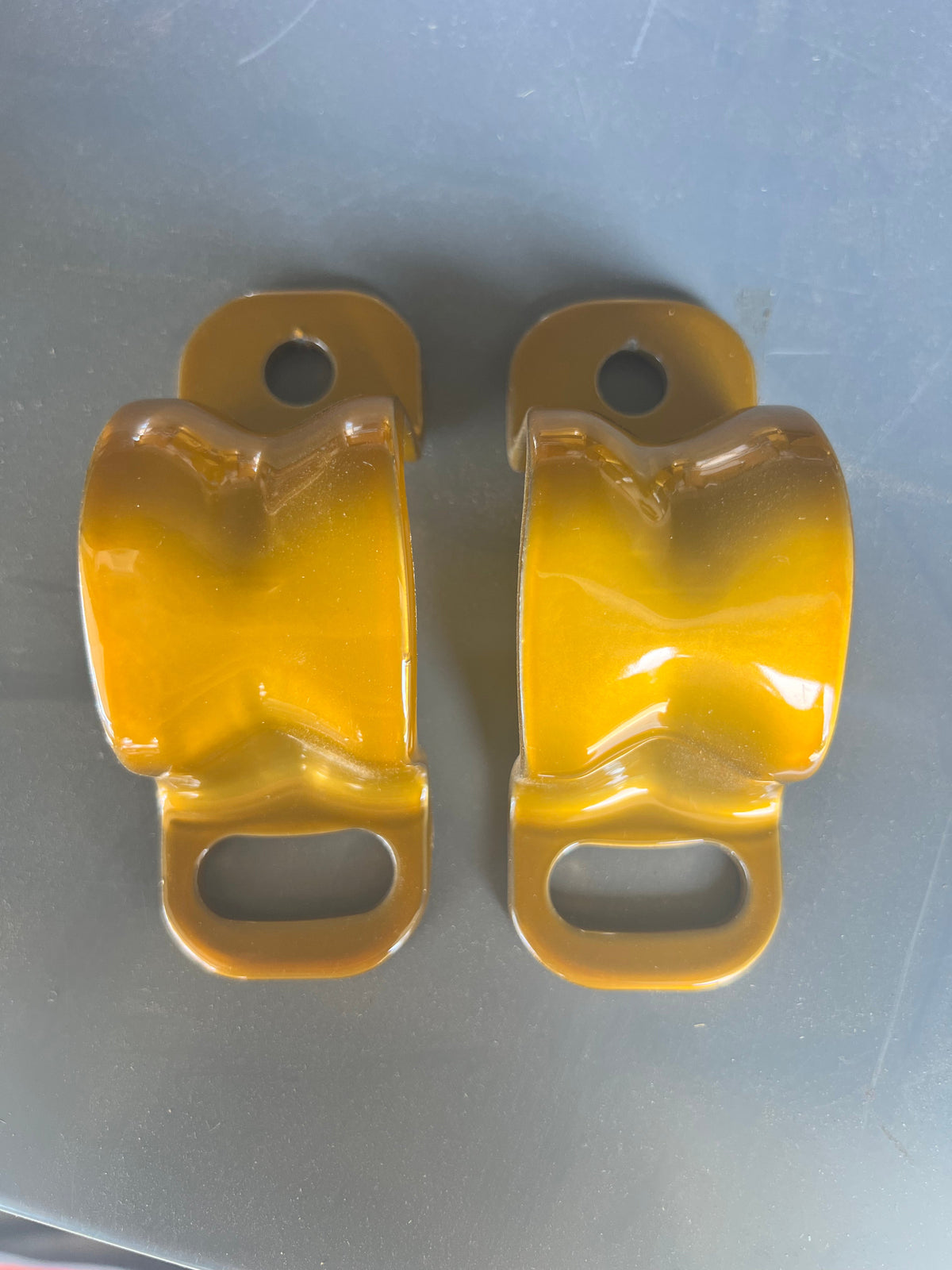

• CNC-machined high-strength steel, powder-coated
• Sold in pairs

Compatibility

• Designed to work with Dr KDSS Front Sway Bar End Adapters — no cutting or modification required

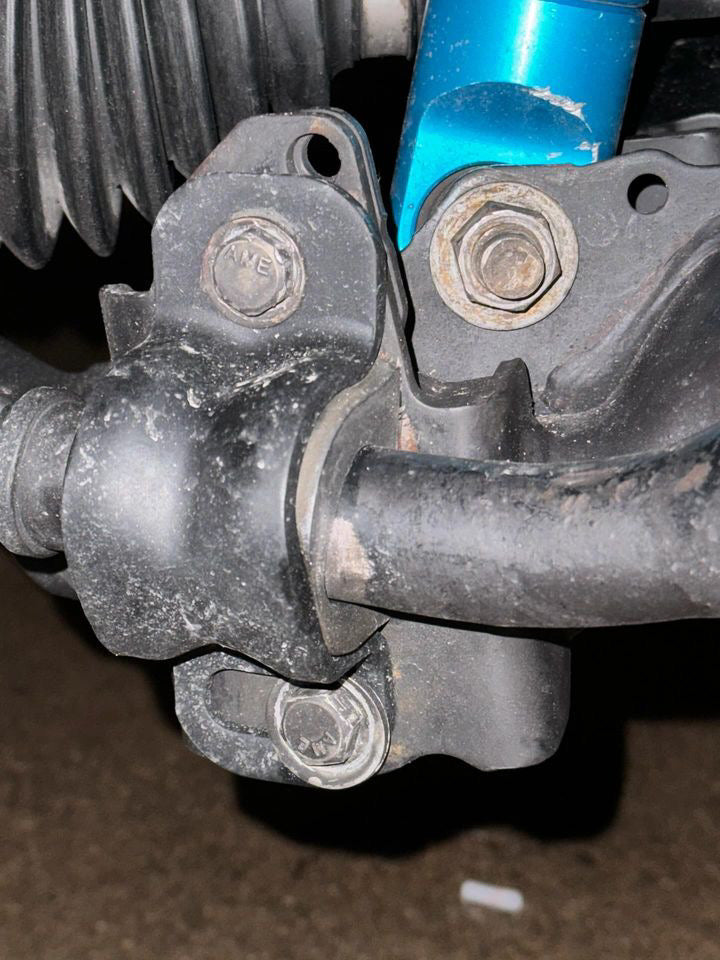

• Using OEM brackets with adapters requires cutting the OEM hooks; these brackets eliminate that step
• Running extended- or long-travel suspension with KDSS? The adapters add droop but can over-rotate the bushing angle — this bracket corrects it
• Can also be used with KDSS drop spacers to fix bushing angle if you keep the sway bar low
• Even stock, unlifted trucks benefit from easier alignment and installation
• GX470 requires the Dr KDSS End Adapters

Install Notes

• Bolt-on installation using factory hardware
• Adjust bracket position to dial in your exact bushing angle
• Torque to 75 ft-lbs with a generous amount of blue Loctite (or very little red) — regardless of what install videos show
• OEM bushings are recommended for most owners who don't grease regularly
