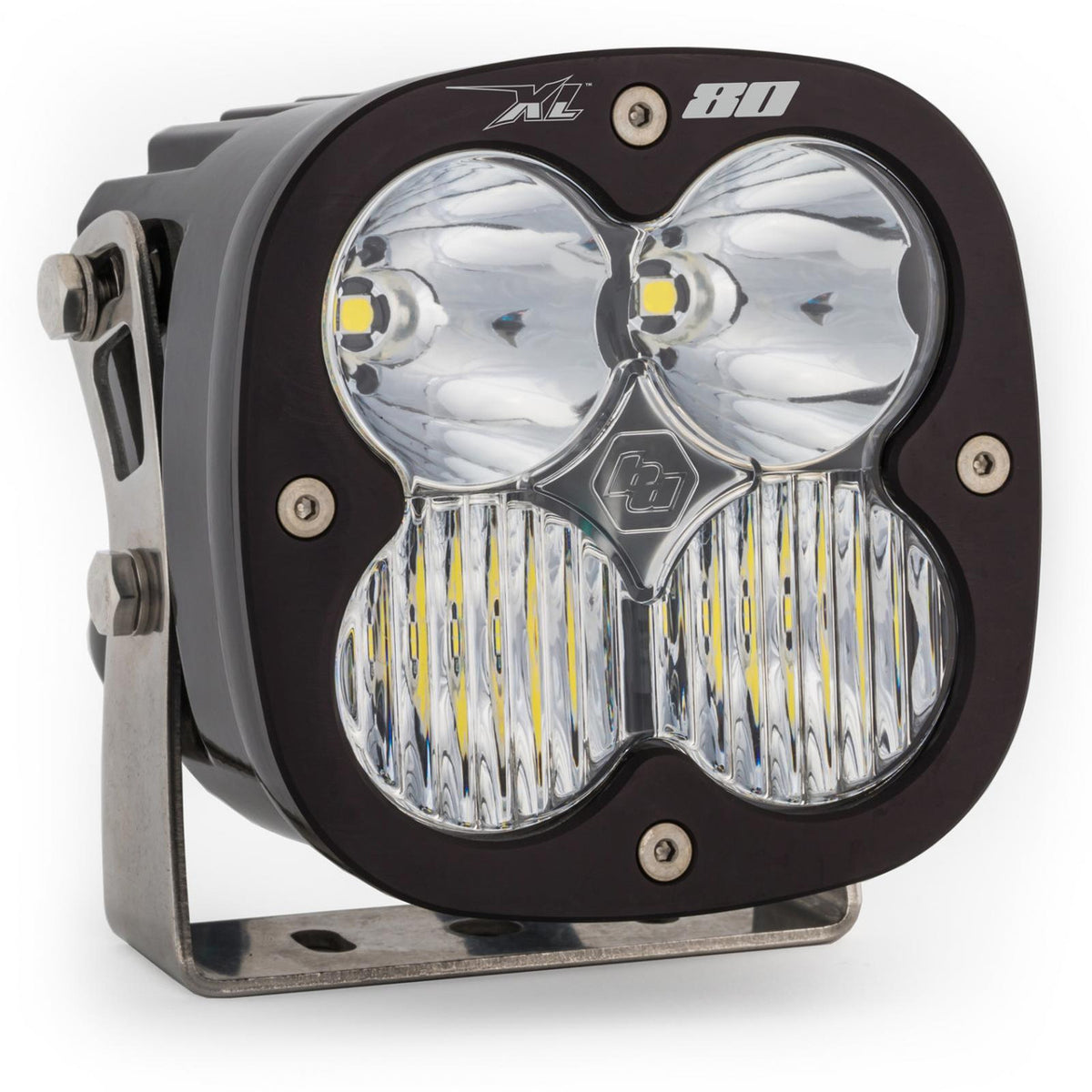

Baja Designs XL80 LED Auxiliary Light Pod | Universal

The Baja Designs XL80 LED auxiliary light pod provides forward lighting for off-road use.

Light patterns and lens colors

• Driving/Combo: combines driving and spot optics for near-field and distance coverage.
• Wide Cornering: a flattened 42-degree beam for peripheral visibility.
• Clear and Baja Amber lenses are available in Driving/Combo and Wide Cornering.
• Work/Scene: a wide 120-degree pattern for work or area lighting. Clear lens only. Work/Scene is not suitable for driving.

Features

• Hardcoated polycarbonate lenses.
• Hard-anodized and powder-coated cast aluminum housing.
• Replaceable lenses and optics.
• Built-in overvoltage protection.
• IP69K water resistance.
• High beam with a 20% dimming feature. Use a compatible control harness to operate the dimming mode.
• 9,022 raw lumens per light.

What is included

• One XL80 LED light pod in the selected pattern and lens color.
• Stainless steel mounting hardware.

Wiring harness

A wiring harness is not included. The manufacturer lists On/Off harness 640115 for this light. The harness is sold separately.

Specifications

• Per-light housing dimensions: 4.43 inches long × 4.43 inches high × 3.65 inches deep.
• Per-light weight: 2.45 lb.
• Per-light electrical rating: 75.9 watts, 5.5 amps.

Fitment and installation

Universal auxiliary lighting for off-road use. Check mounting clearance, bracket position, wiring length, and electrical connections before installation. Vehicle-specific mounts are not included.
