Baja Designs XL Sport Linkable LED Light Bar | Universal
$999.95
Sale price
$999.95
Regular price

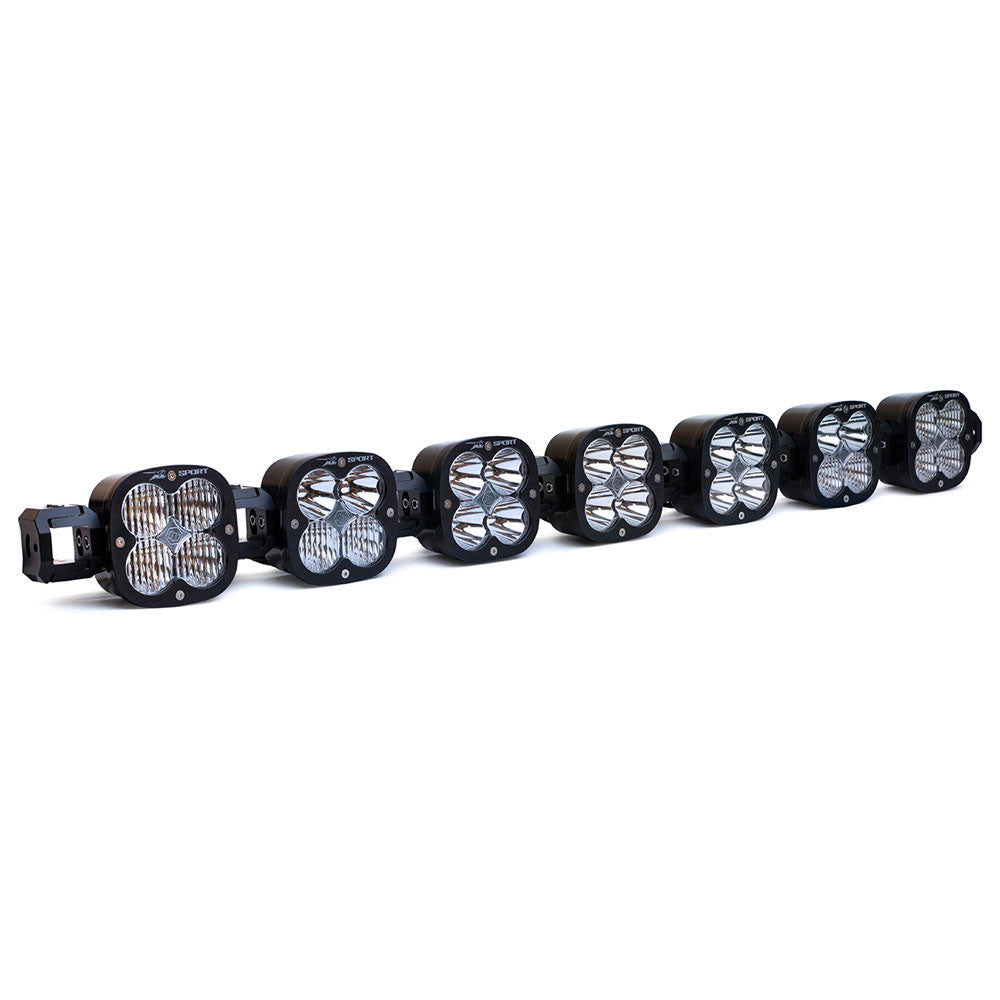

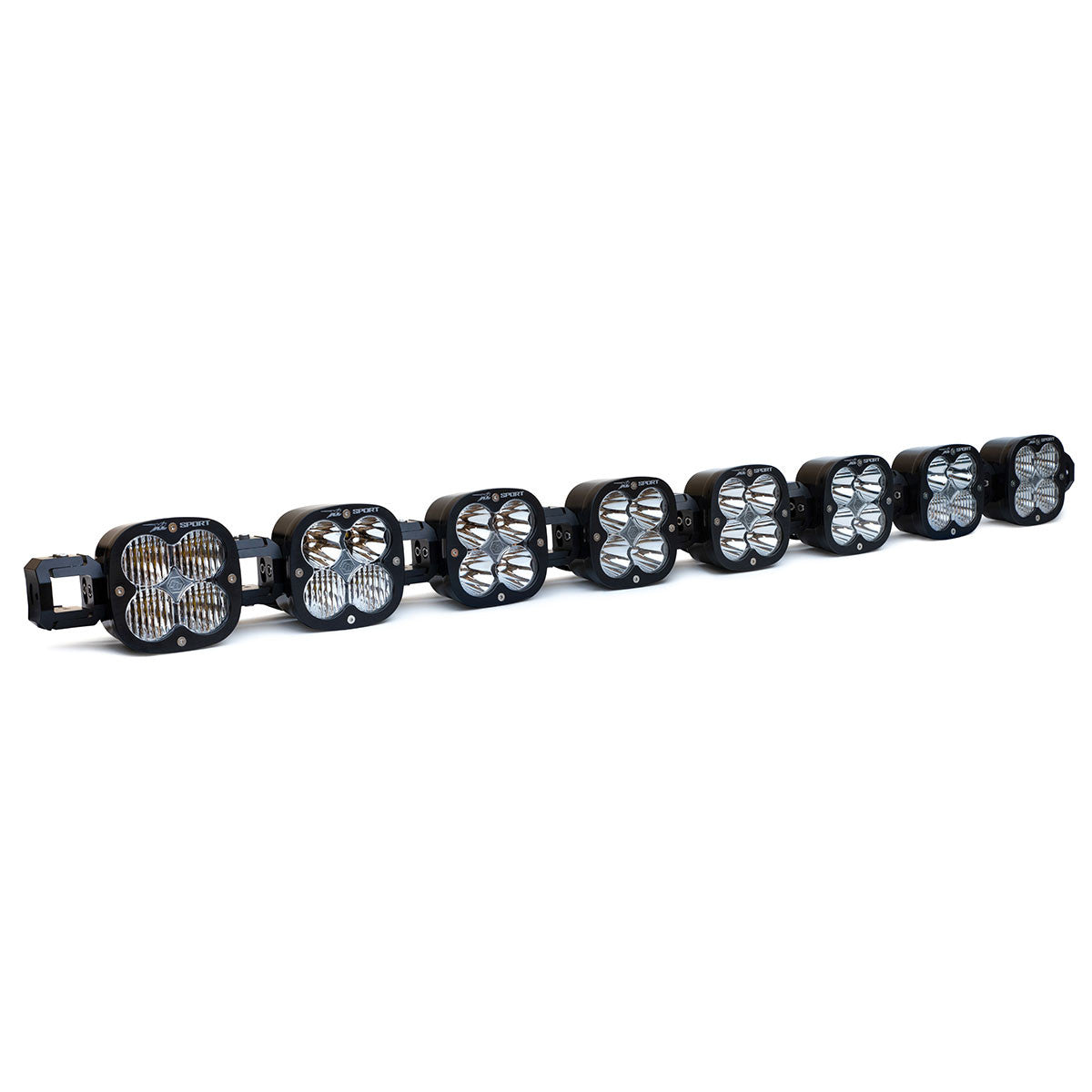

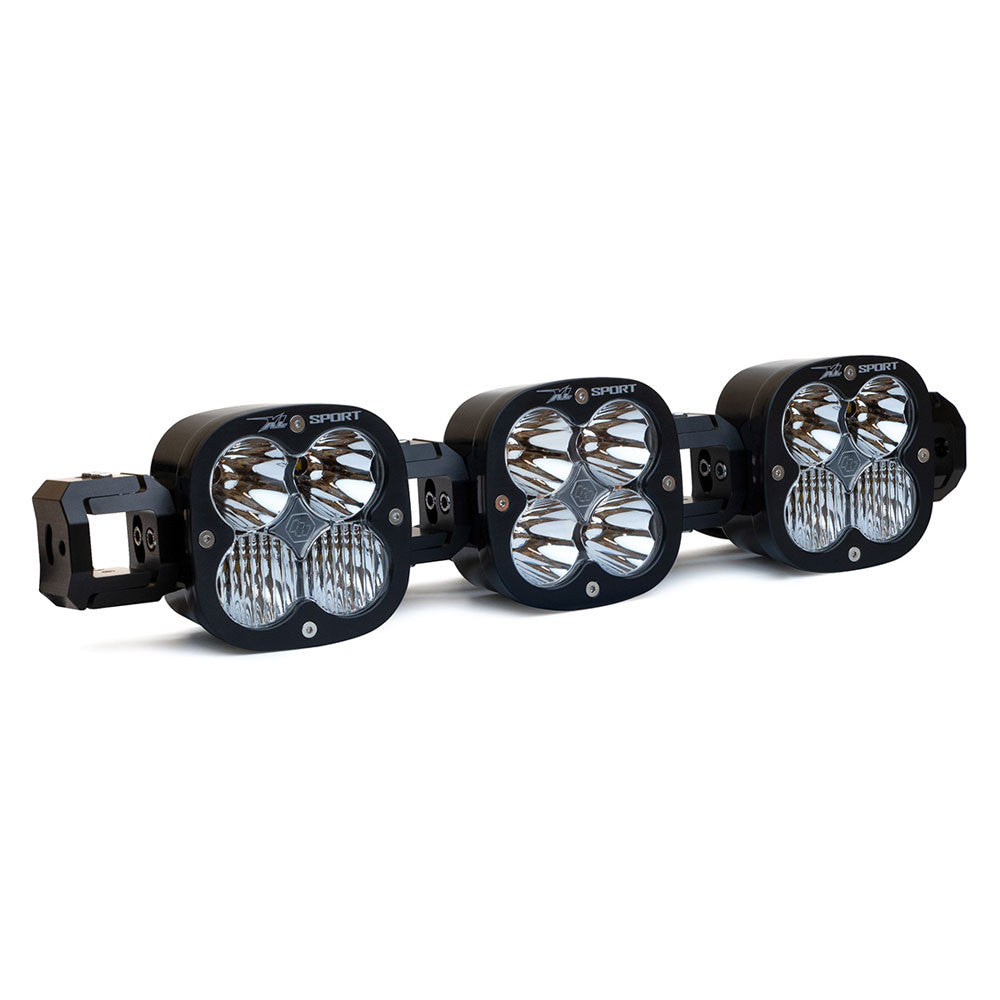

The Baja Designs XL Sport Linkable LED light bar provides independent adjustment for a straight or curved lighting system.
Specifications

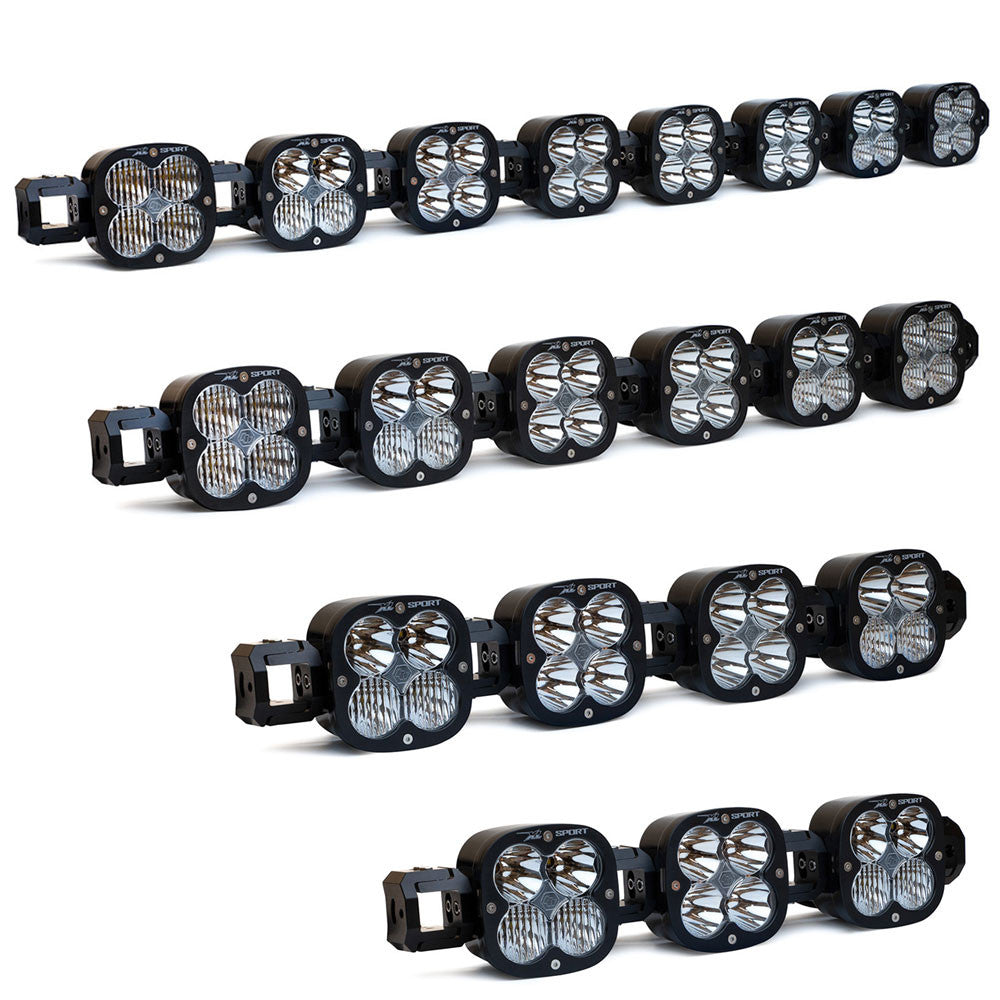

- Available with three to nine lights.
- Up to 45 degrees of vertical pitch adjustment per light or for the complete unit.
- Independent horizontal adjustment per light.

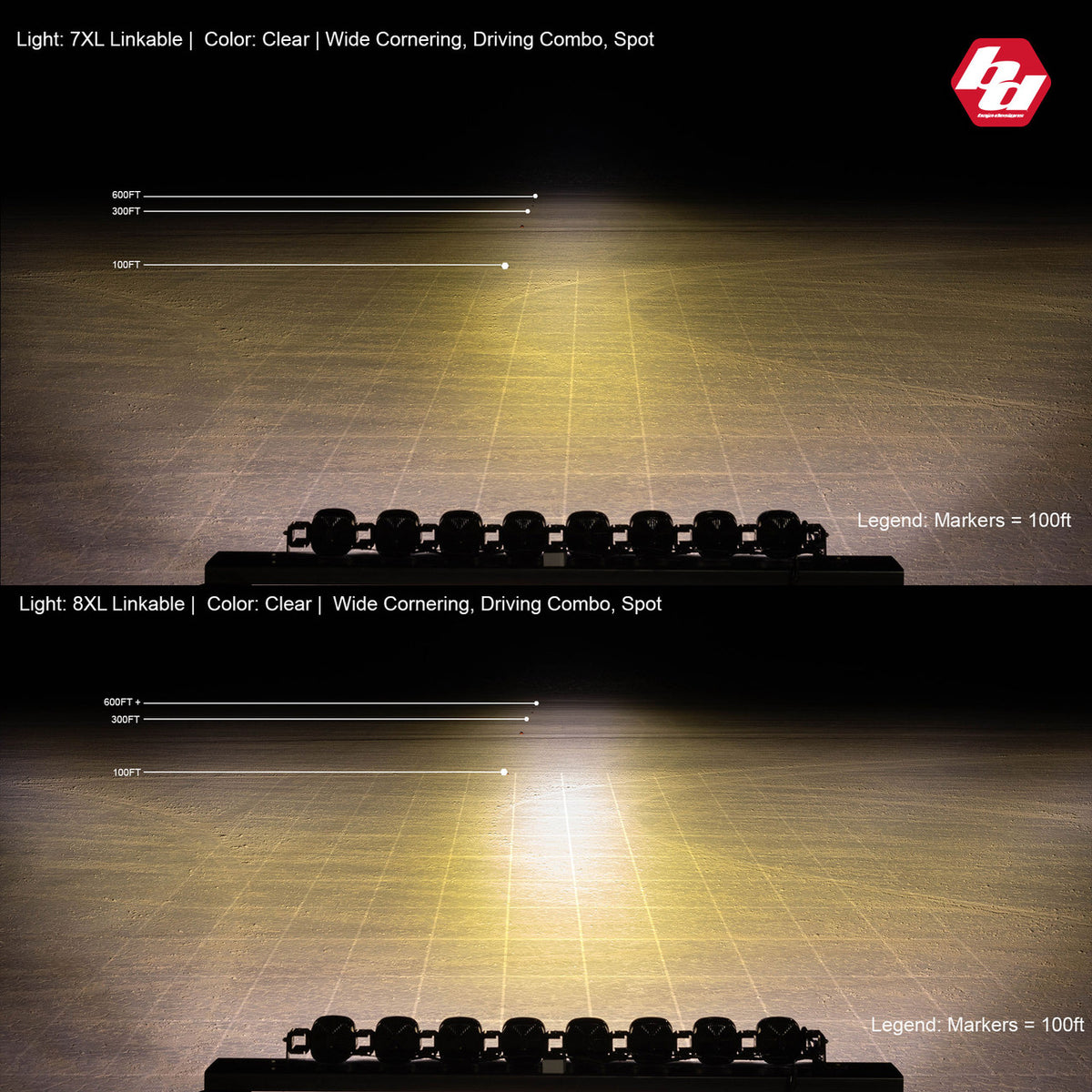

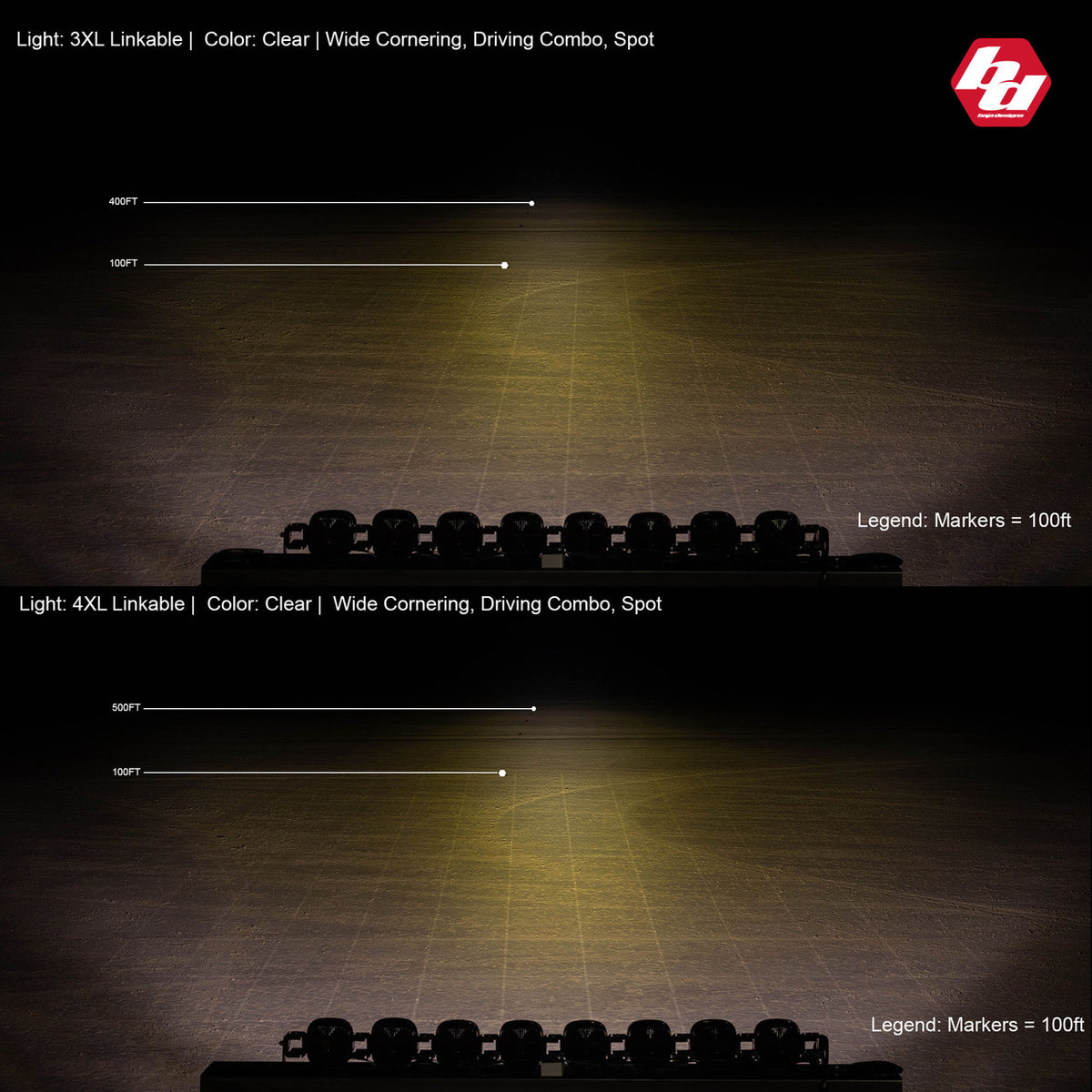

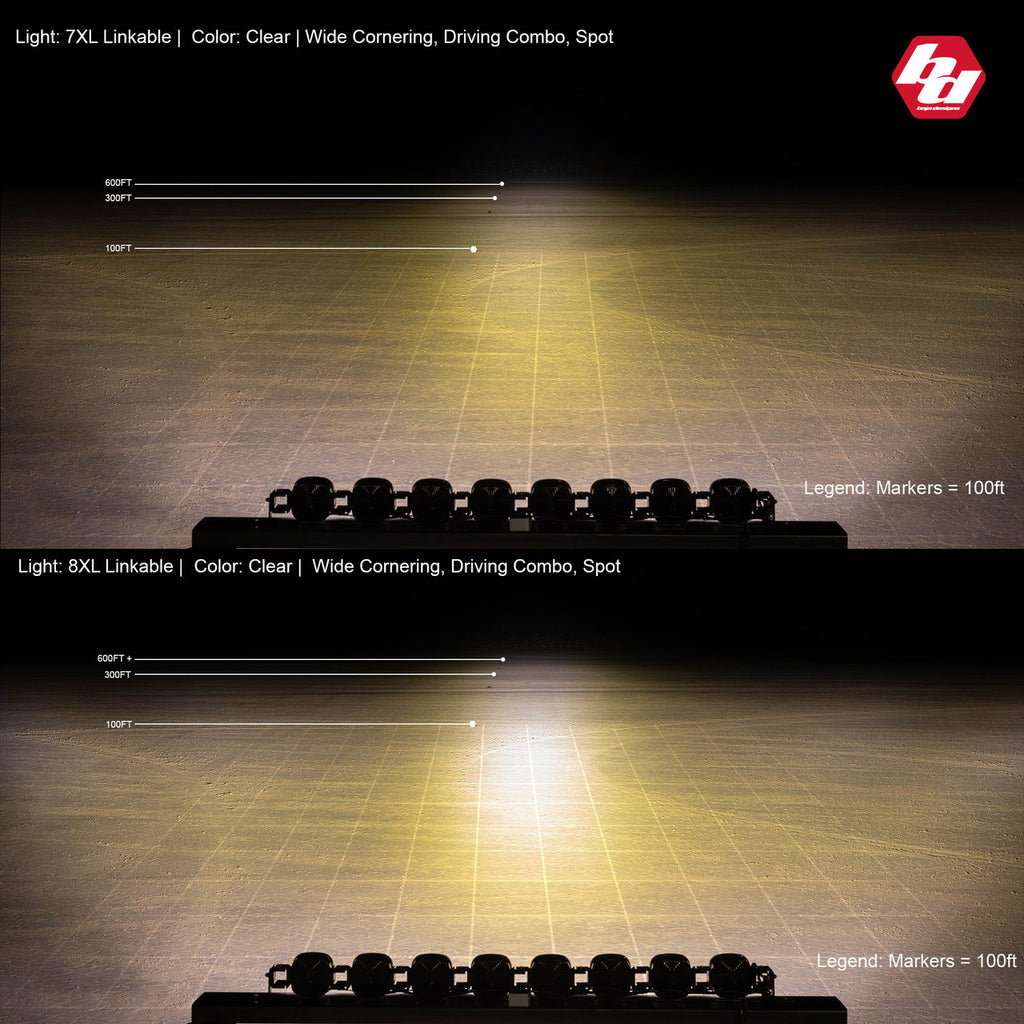

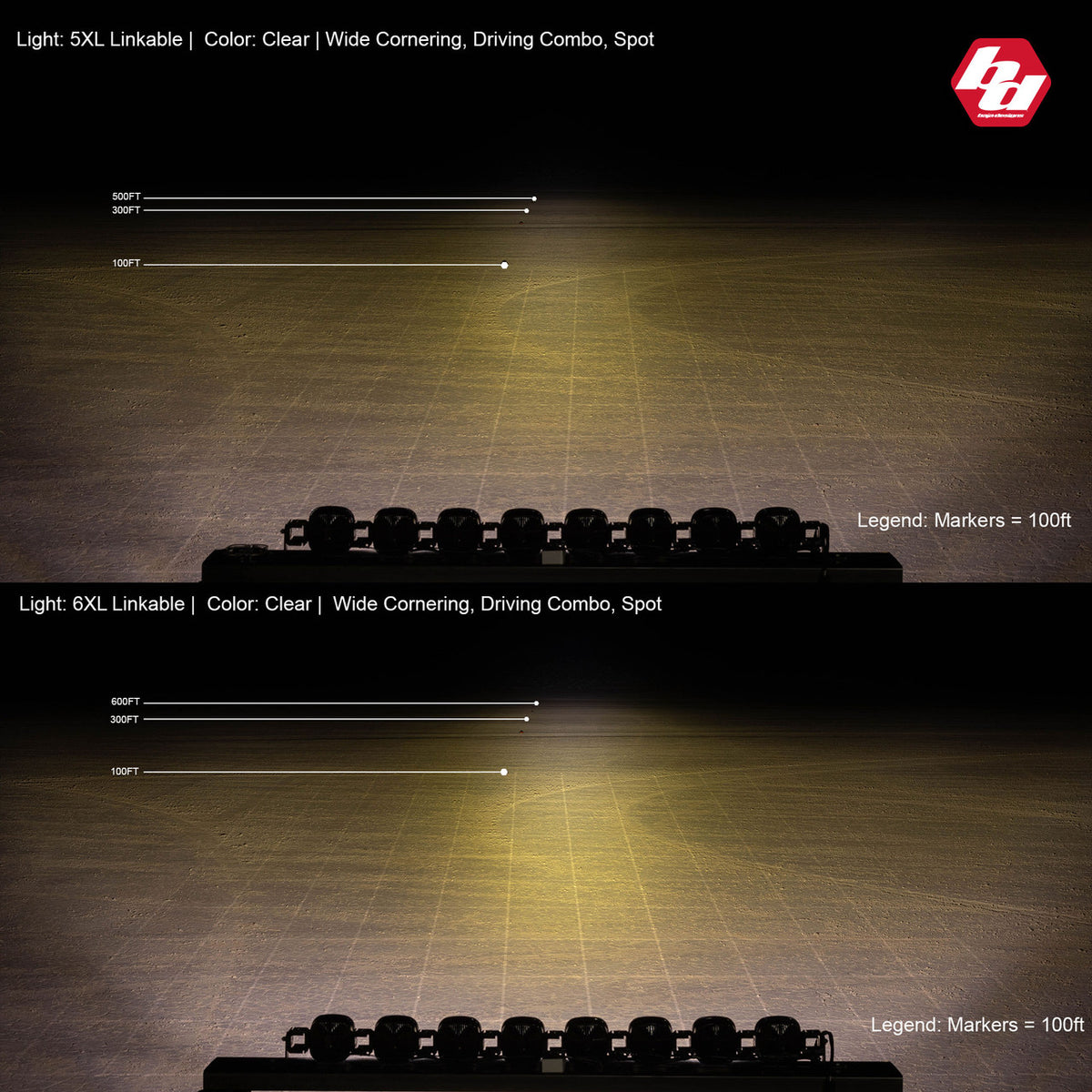

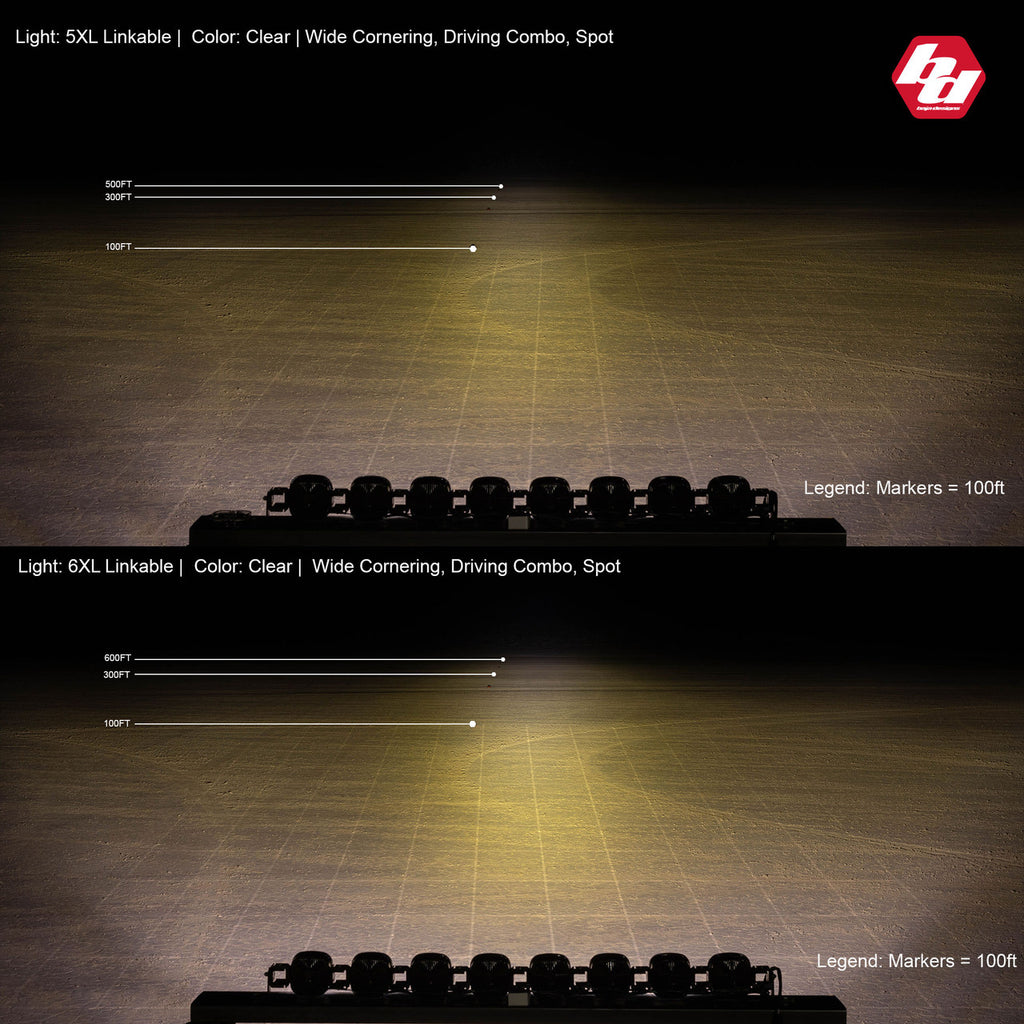

- Mixed lens patterns provide coverage across lighting zones 1–4.
- Black light housings with Clear lenses.
What is included
- Selected XL Sport Linkable light assembly.
- Pre-crimped wiring, connecting links, and pre-load kit.
- Black rock guards.
- Wiring harness.
Installation and compatibility
Vehicle mounting brackets are not included; Baja Designs specifies bracket kit 748000, sold separately. The Sport product description specifies harness 640115. Confirm the circuit and connectors for your selected light count. Confirm mounting width and electrical capacity. For off-road use.
Specifications by configuration
| SKU | Raw lumens | Watts | Amps | Length (in.) | Weight (lb.) |
|---|---|---|---|---|---|
| 740005 | 22,050 | 182 | 14 | 45.34 | Not supplied |
| 740006 | 25,200 | 208 | 16 | 51.52 | Not supplied |
| 740003 | 15,750 | 130 | 10 | 32.99 | Not supplied |
| 740004 | 18,900 | 156 | 12 | 39.16 | Not supplied |
| 740002 | 12,600 | 104 | 8 | 26.81 | Not supplied |
| 740001 | 9,450 | 78 | 6 | 20.63 | Not supplied |
Fitment
Universal fit within the equipment applications stated above. No vehicle-specific fitment is claimed.
