Baja Designs XL Racer Edition LED Auxiliary Light Pod Pair | Universal

The Baja Designs XL Racer Edition light pair includes two LED auxiliary light pods for off-road use.

Light patterns and lens colors

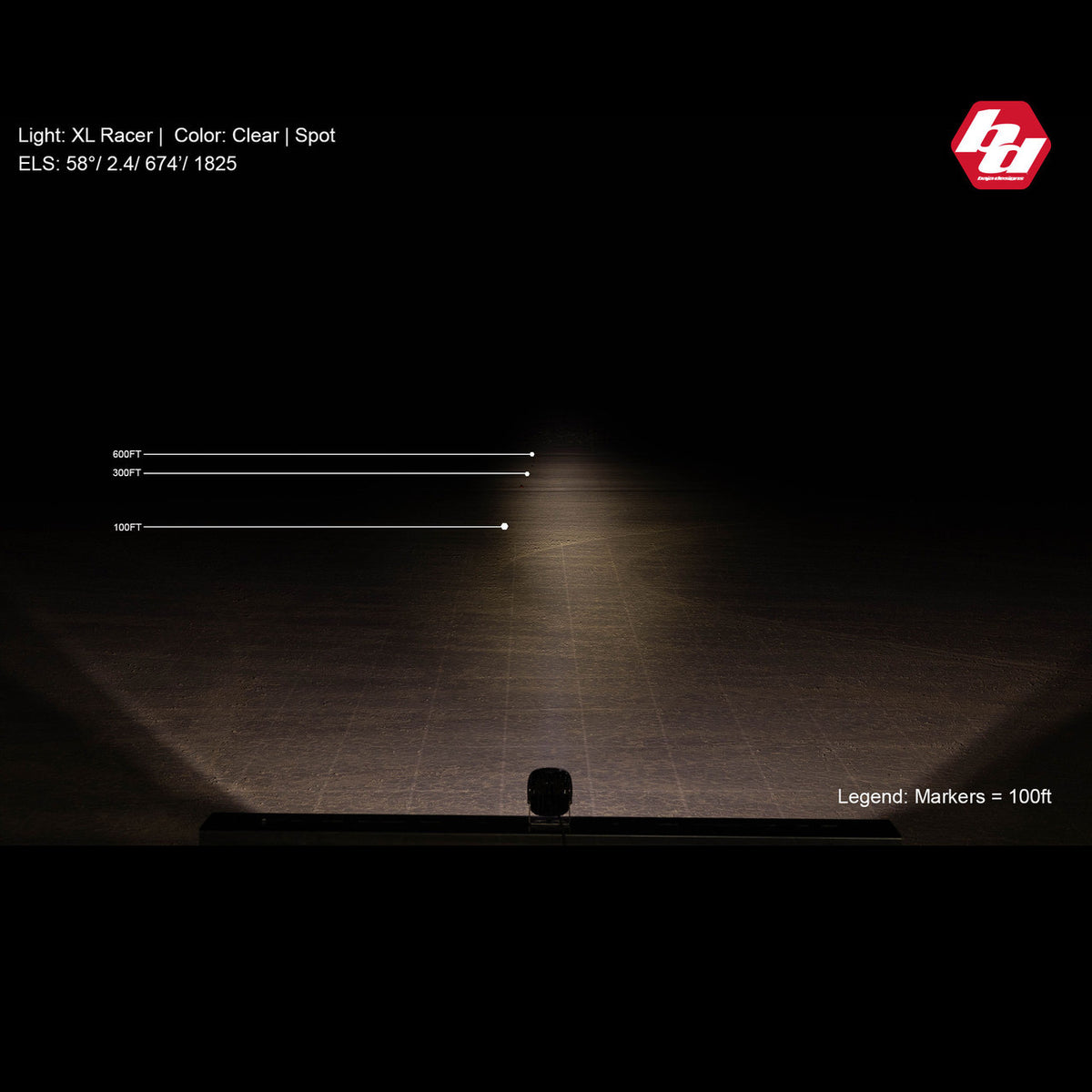

• Racer Spot: a focused beam for long-distance off-road lighting. Clear lens only.

Features

• Hardcoated polycarbonate lenses.
• Hard-anodized and powder-coated cast aluminum housing.
• Replaceable lenses and optics.
• Built-in overvoltage protection.
• IP69K water resistance.
• High beam with a 20% dimming feature. Use a compatible control harness to operate the dimming mode.
• 2,800 raw lumens per light.

What is included

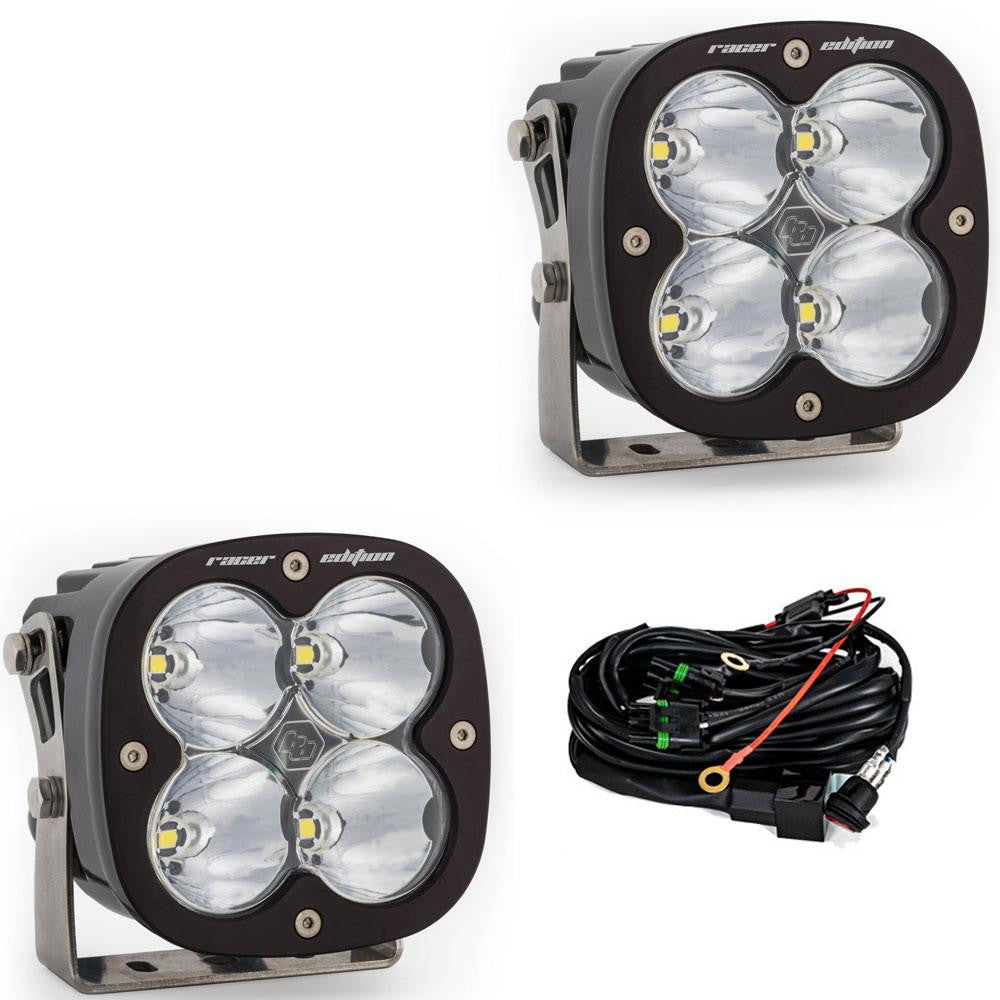

• Two XL Racer Edition LED light pods in the selected pattern and lens color.
• Stainless steel mounting hardware.
• Wiring harness.

Mode control

High/low mode control requires a compatible harness, such as manufacturer harness 640119. Check the included harness before installation; a separate mode-control harness may be required.

Specifications

• Per-light housing dimensions: 4.43 inches long × 4.43 inches high × 3.65 inches deep.
• Per-light weight: 2.45 lb.
• Per-light electrical rating: 45.54 watts, 3.3 amps.

Fitment and installation

Universal auxiliary lighting for off-road use. Check mounting clearance, bracket position, wiring length, and electrical connections before installation. Vehicle-specific mounts are not included.
