Baja Designs XL-R Sport LED Auxiliary Light Pod | Universal

The Baja Designs XL-R Sport LED auxiliary light pod provides forward lighting for off-road use. The round outer bezel gives the light a circular profile.

Light patterns and lens colors

• Spot: a narrow 9-degree beam for distance. Use with other beam patterns for broader coverage.
• Driving/Combo: combines driving and spot optics for near-field and distance coverage.
• Wide Cornering: a flattened 42-degree beam for peripheral visibility.
• Clear lenses are available in all three patterns. Baja Amber lenses are available in Driving/Combo and Wide Cornering.

Features

• Hardcoated polycarbonate lenses.
• Cast aluminum housing with a black finish.
• Replaceable lenses and optics.
• Built-in overvoltage protection.
• IP69K water resistance.

What is included

• One XL-R Sport LED light pod in the selected pattern and lens color.
• Stainless steel mounting hardware.

Wiring harness

A wiring harness is not included. Compatible manufacturer harnesses: 640115 (On/Off, 3-pin). The harness is sold separately.

Specifications

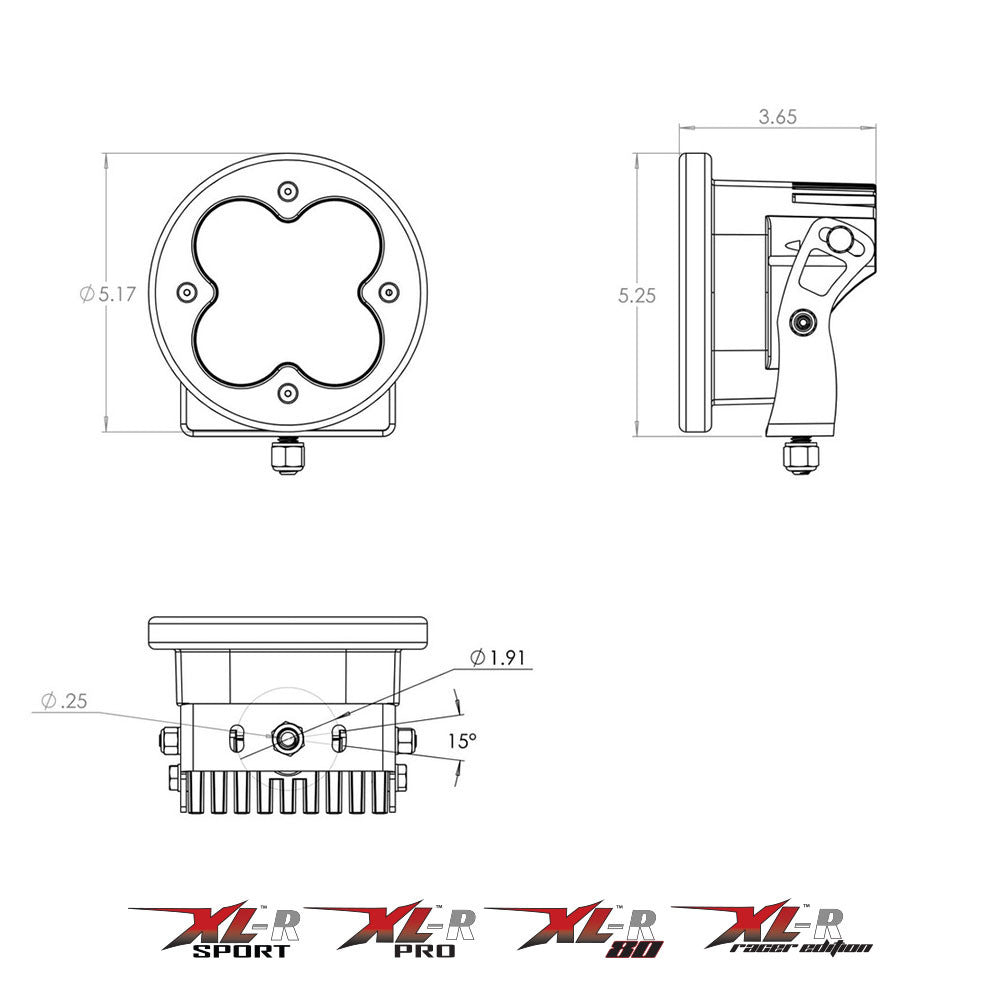

• Per-light housing dimensions: 5.24 inches long × 5.24 inches high × 3.65 inches deep.
• Manufacturer-listed weight: 2.45 lb per light.

Fitment and installation

Universal auxiliary lighting for off-road use. Check mounting clearance, bracket position, wiring length, and electrical connections before installation. Vehicle-specific mounts are not included.
