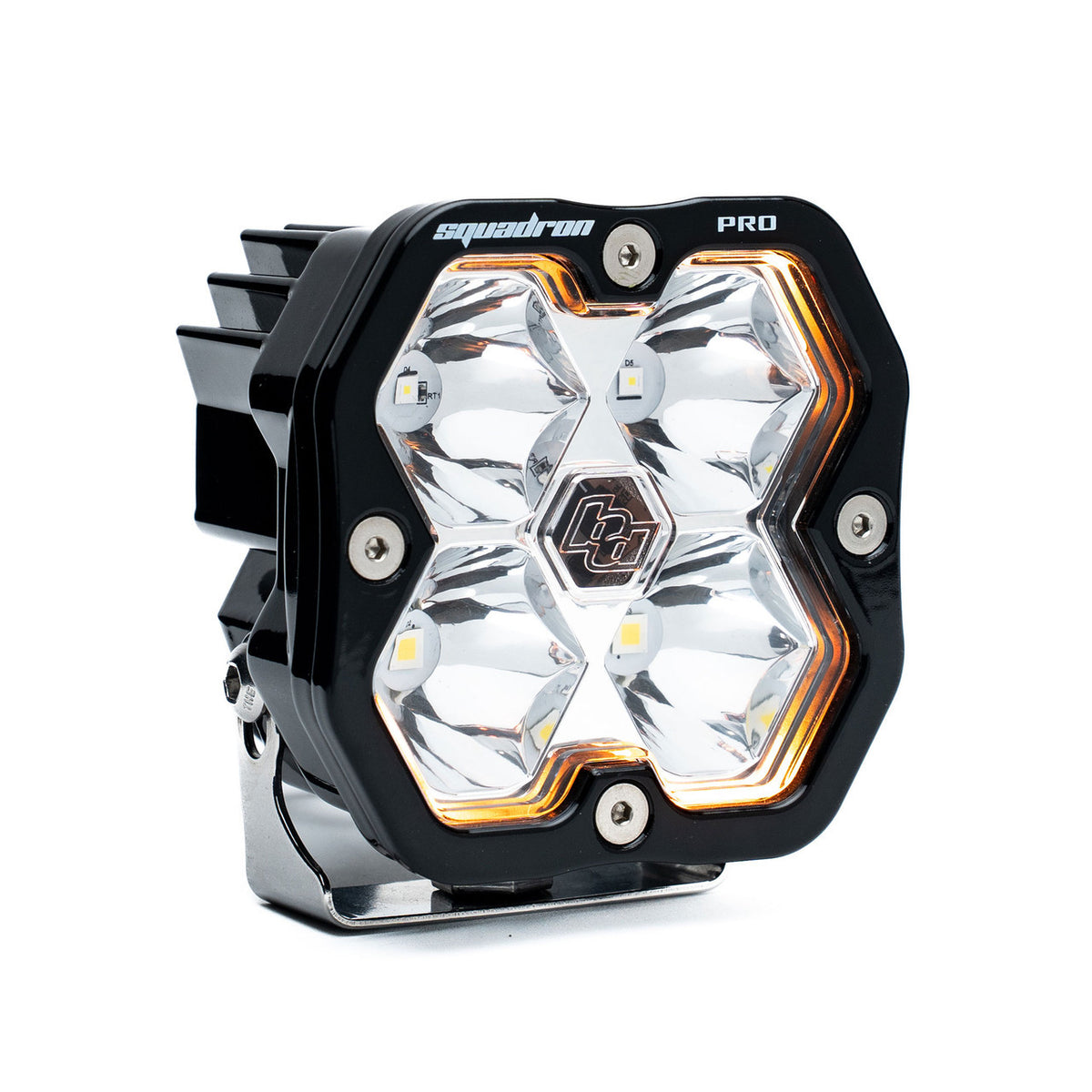

Baja Designs Squadron 2.0 Pro Black LED Auxiliary Light Pod | Universal

The Baja Designs Squadron 2.0 Pro Black LED light pod provides compact off-road lighting with replaceable optics and a nine-color selectable backlight. Choose an available beam pattern and lens color for your application.

Features

• Black aluminum housing.

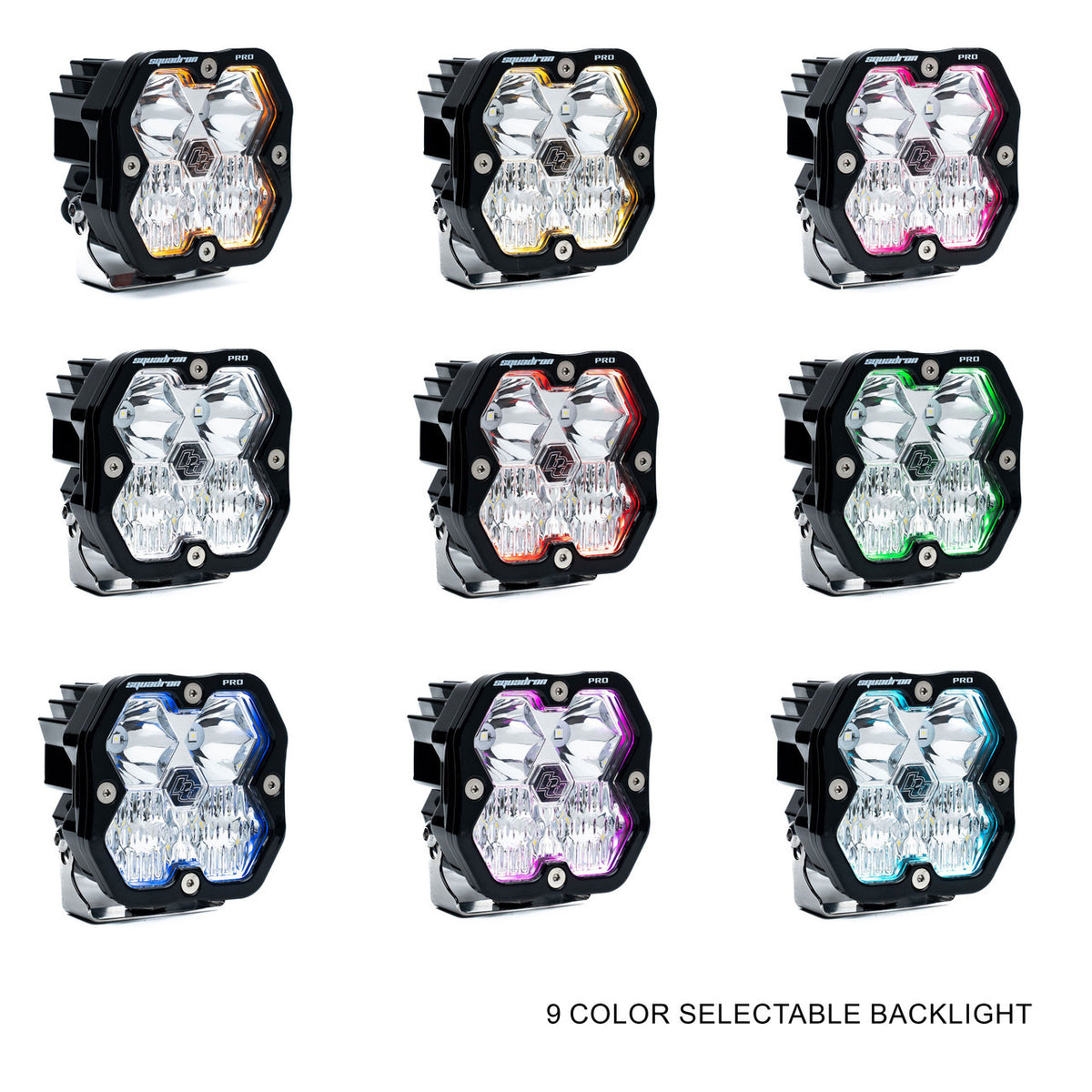

• Nine selectable backlight colors.
• Four-pin Deutsch-style connector.
• Replaceable lenses and clip-in reflectors.
• Redesigned gasket for sealing protection.

Specifications

• Raw output: 5,921 lumens per light.
• Power draw: 65 watts, 5.2 amps at 13.8V.
• White-light operating voltage: 10–36V.
• Backlight operating voltage: 11–14V.
• IP69K water resistance.
• Light dimensions: 3.32 × 3.29 × 2.84 inches.

Beam patterns

• Spot: a narrow beam for distance; use with other patterns for wider coverage.
• Driving/Combo: combines distance and near-field lighting.
• Wide Cornering: a broad beam for peripheral visibility.
• Work/Scene: area lighting for work or camp. Work/Scene is not suitable for driving.

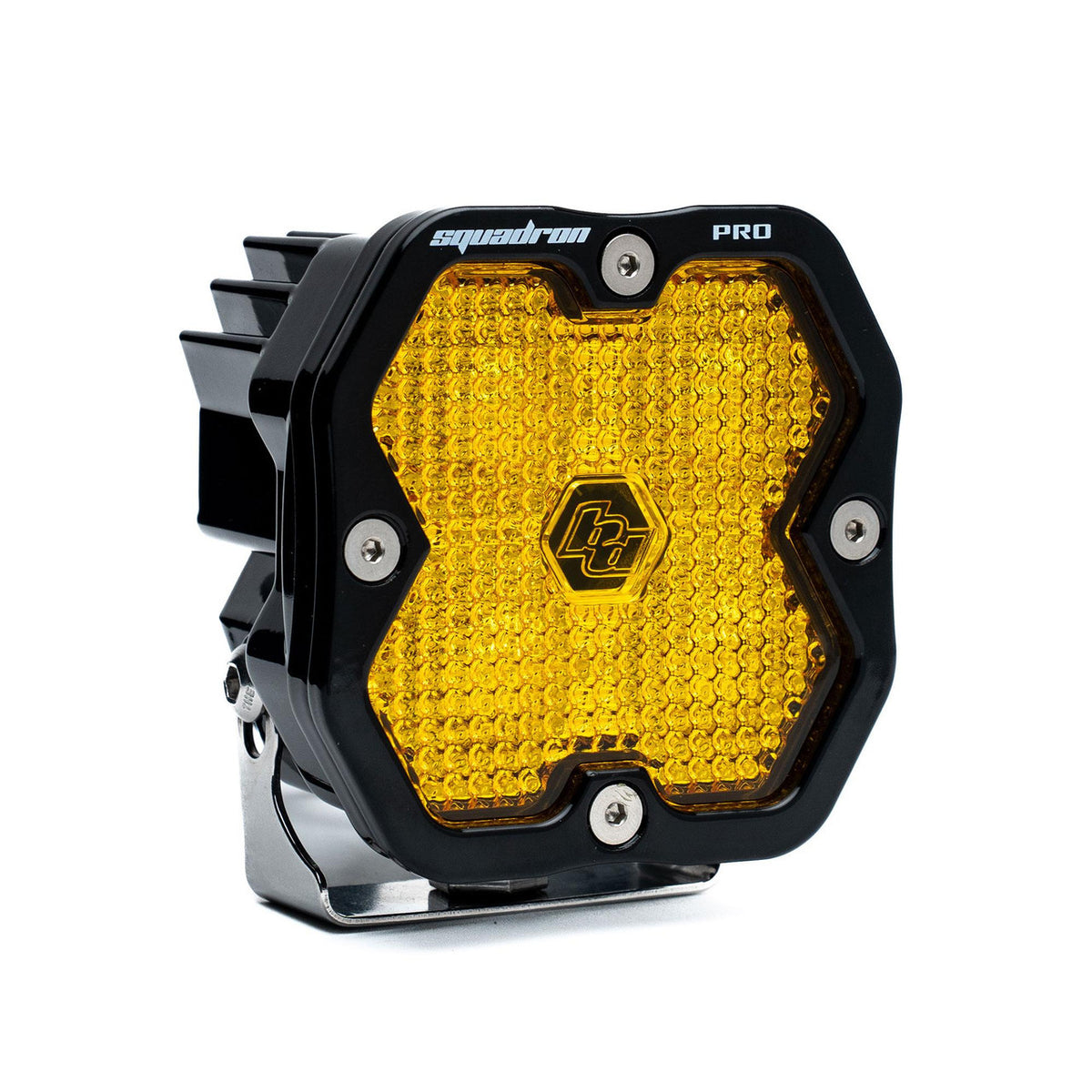

Lens colors

Clear and Baja Amber are available in the configurations shown in the product options.

What is included

• One Squadron 2.0 Pro light pod in the selected pattern and lens color.
• Mounting hardware.

Installation

A wiring harness is not included. Supply a compatible harness and confirm the mounting space, connectors, and electrical circuit before installation. For off-road use.

Fitment

Universal accessory for compatible lighting equipment or mounting applications. Vehicle-specific fitment is not claimed.
