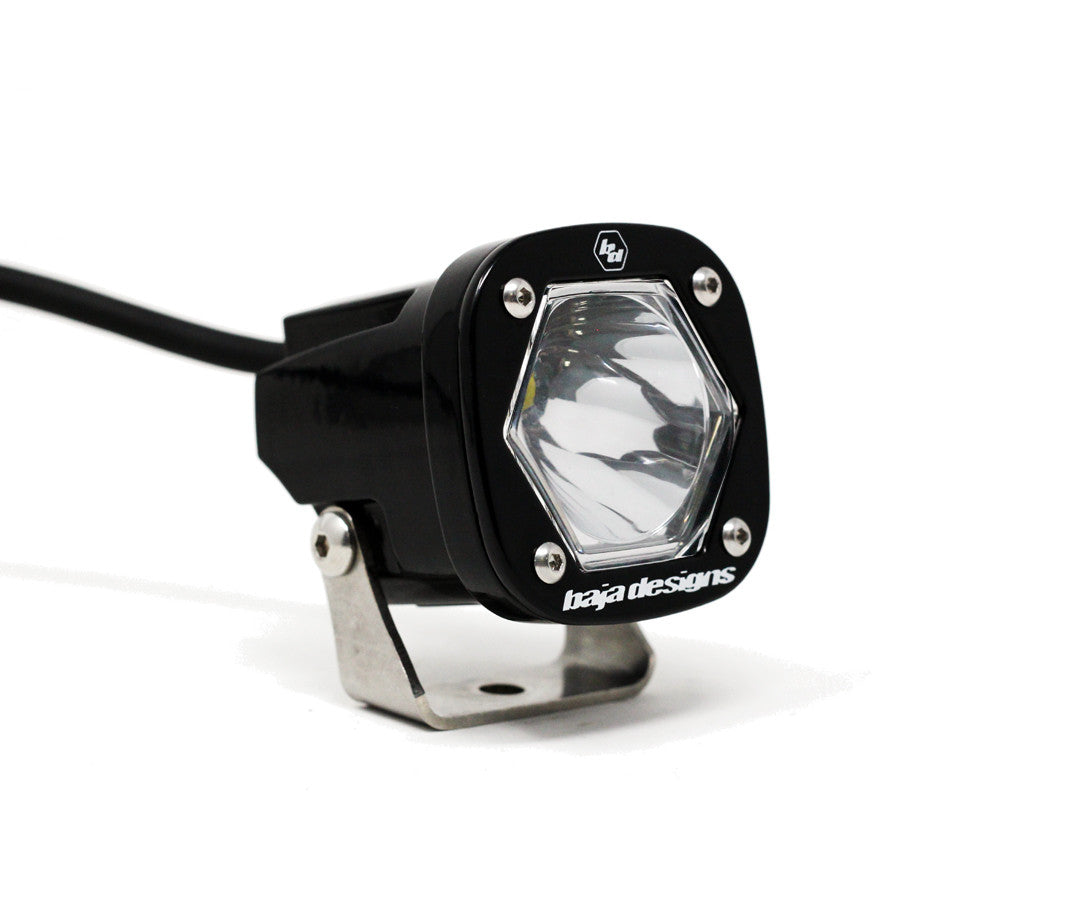

Baja Designs S1 Black LED Auxiliary Light Pod | Universal

The Baja Designs S1 Black light pod provides compact off-road and area lighting. Select the beam pattern for your application.

Options and operation

• Spot, Wide Cornering, Work/Scene, or Trail pattern.
• Work/Scene is for area lighting and is not suitable for driving.
• The Trail lens is designed for near and middle-distance visibility at low speeds.
• Clear lenses are available for all patterns. Baja Amber is available for Wide Cornering and Trail.

Specifications

• Output: 2,320 raw lumens.
• Power: 19.596 watts and 1.42 amps.
• Input voltage: 9–28 volts.

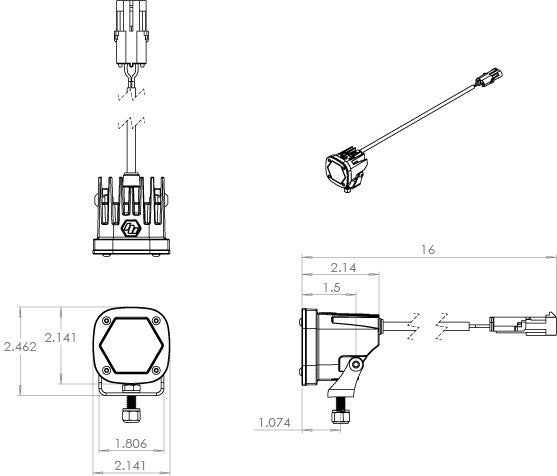

• Each light housing measures 2.1 × 2.1 × 2.1 inches and weighs 0.4 pounds.
• Hard-anodized and powder-coated cast-aluminum housing.
• Hardcoated polycarbonate lens; replaceable lenses and optics.
• IP69K water resistance; 5000K light color temperature.

What is included

One LED light pod in the selected configuration and stainless steel mounting hardware. A wiring harness is not included.

The manufacturer lists harness 64-0139 for one light and harness 640117 for two lights. Sold separately.

Fitment and use

Universal light accessory. Check mounting clearance, electrical requirements, and the wiring connection before installation. For off-road use.
