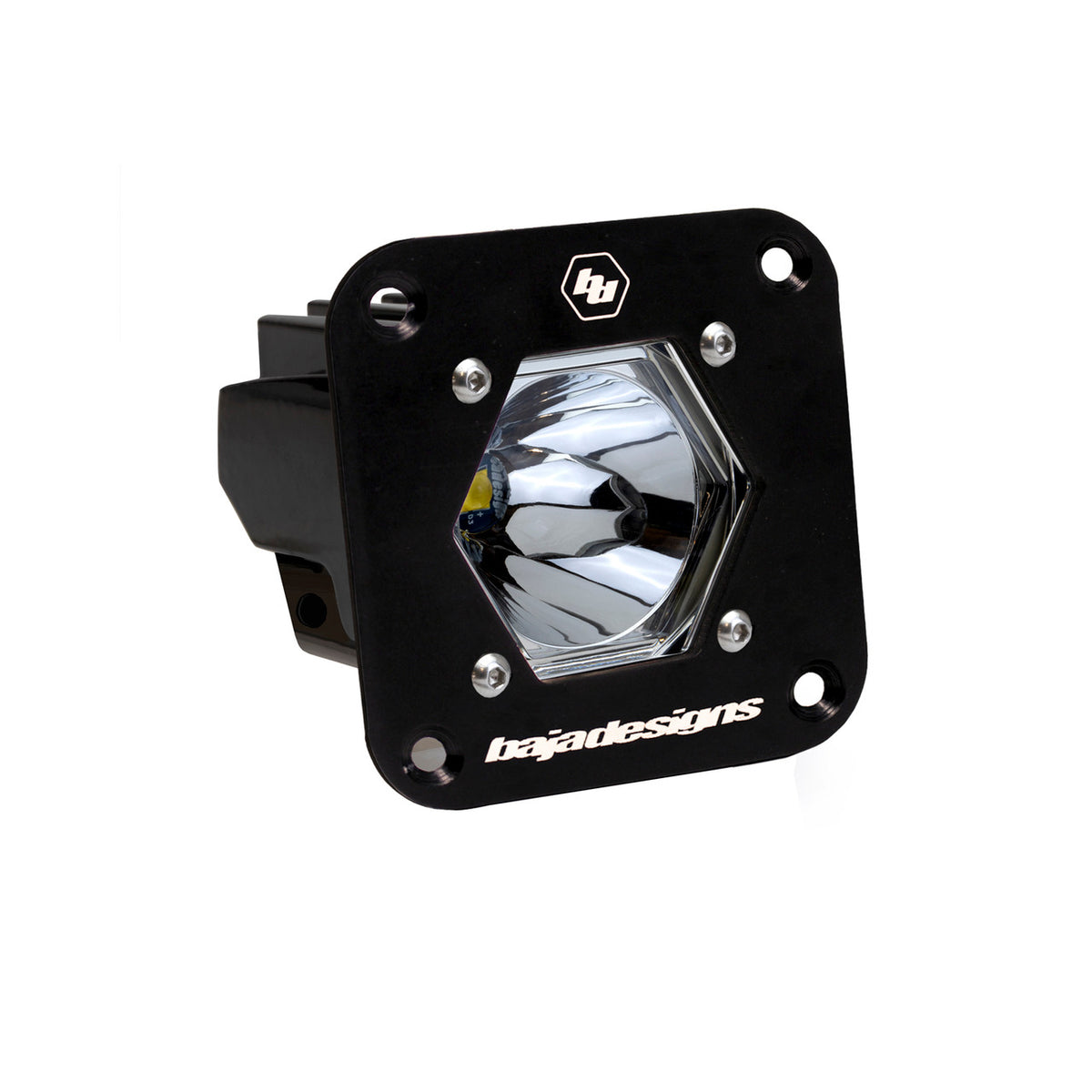

Baja Designs S1 Black Flush Mount Auxiliary Light Pod | Universal

The Baja Designs S1 Black Flush Mount light pod provides compact off-road and area lighting. Select the beam pattern for your application.

Options and operation

• Spot, Wide Cornering, or Work/Scene pattern.
• Work/Scene is for area lighting and is not suitable for driving.
• Clear lens on all variants.

Specifications

• Output: 2,320 raw lumens.
• Power: 19.596 watts and 1.42 amps.
• Input voltage: 9–28 volts.
• Each light housing measures 2.1 × 2.1 × 2.1 inches and weighs 0.4 pounds.
• Hard-anodized and powder-coated cast-aluminum housing.
• Hardcoated polycarbonate lens; replaceable lenses and optics.
• IP69K water resistance; 5000K light color temperature.

Flush mount installation

The manufacturer specifies a 2.5-inch hole saw opening for the flush mount. Check the mounting surface and clearance before cutting.

What is included

One LED light pod in the selected configuration and stainless steel mounting hardware. A wiring harness is not included.

The manufacturer lists harness 640117 for this light. Sold separately.

Fitment and use

Universal light accessory. Check mounting clearance, electrical requirements, and the wiring connection before installation. For off-road use.
