Baja Designs RTL-M Mini LED Rear Light Bar | Universal

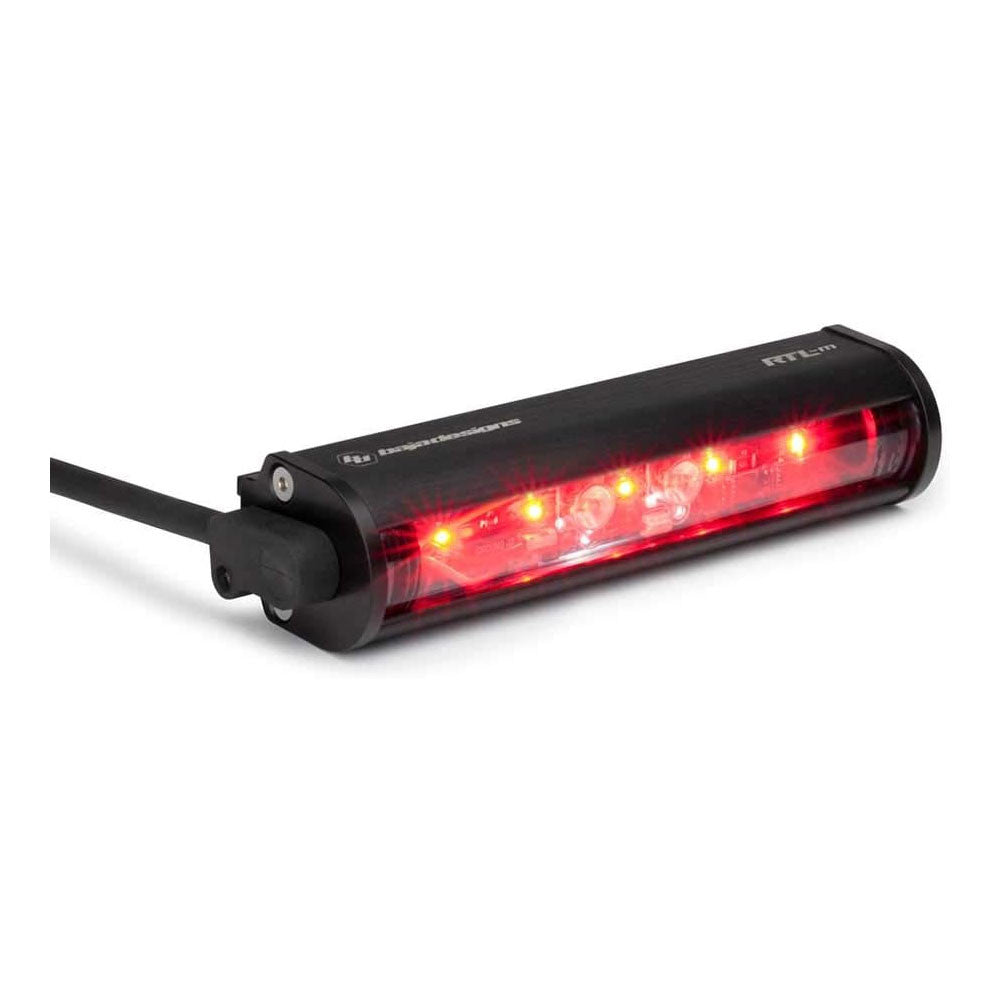

The Baja Designs RTL-M is a compact rear LED light bar for installations with limited space. Five red LEDs provide running and brake lighting, while two central white LEDs provide cargo and scene lighting.

Options and light functions

• Nominal bar size: 6 inches.

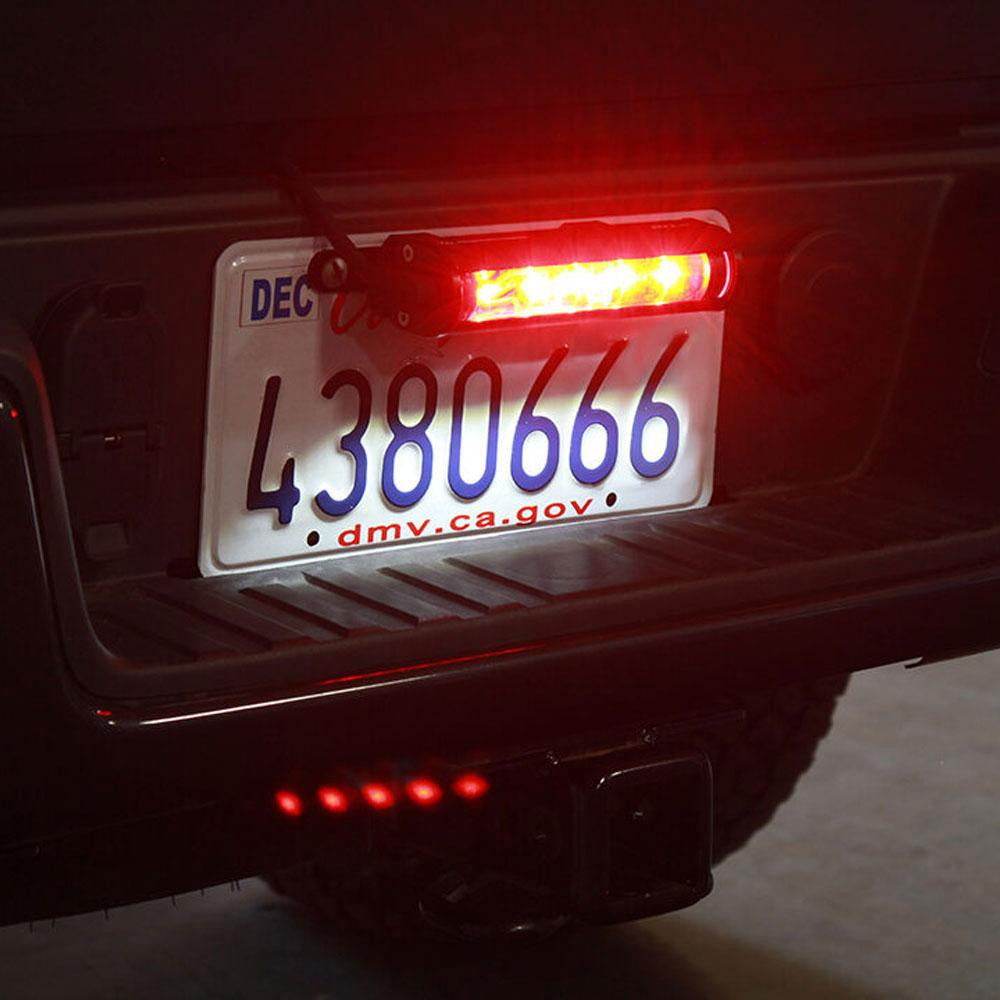

• License Plate Light = Yes: includes the license plate illuminator.
• License Plate Light = No: does not include the license plate illuminator.
• Both configurations provide red running and brake lights and white cargo or scene lighting.

Specifications

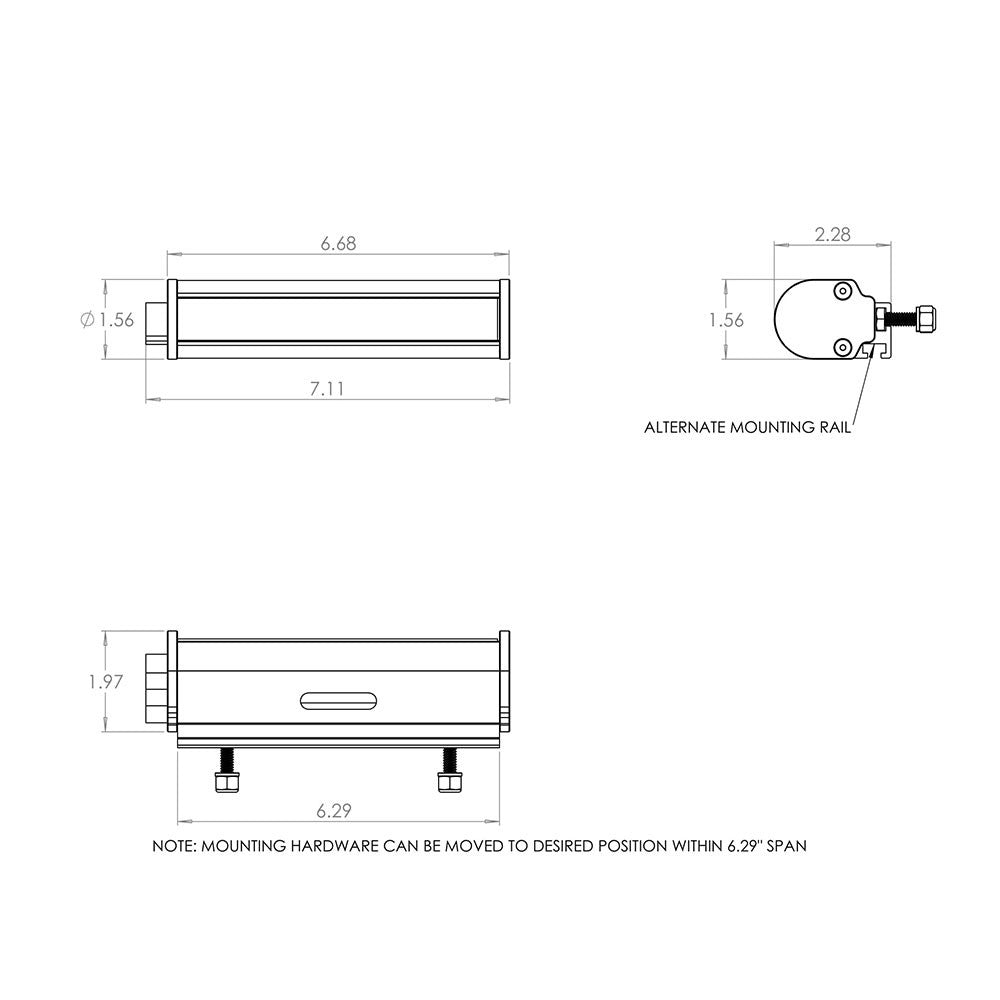

• Overall size: 6.69 × 1.56 × 2.5 inches; weight: 1.1 pounds.
• Manufacturer-listed brightness: 312 lumens.
• Power: 5.5 watts for brake, 8.5 watts for cargo, and 0.75 watts for the tail light.
• The license plate light uses 2 watts when included.
• Black housing; built-in overvoltage protection.
• IP69K water resistance.

What is included

One rear LED light bar in the selected configuration and stainless steel mounting hardware. A wiring harness is not included.

The manufacturer lists harness 640127 for automotive RTL wiring or harness 640605 for RTL-M license plate wiring. Sold separately.

Fitment and installation

Universal rear light accessory. Check mounting clearance, electrical connections, and the required control functions before installation.
