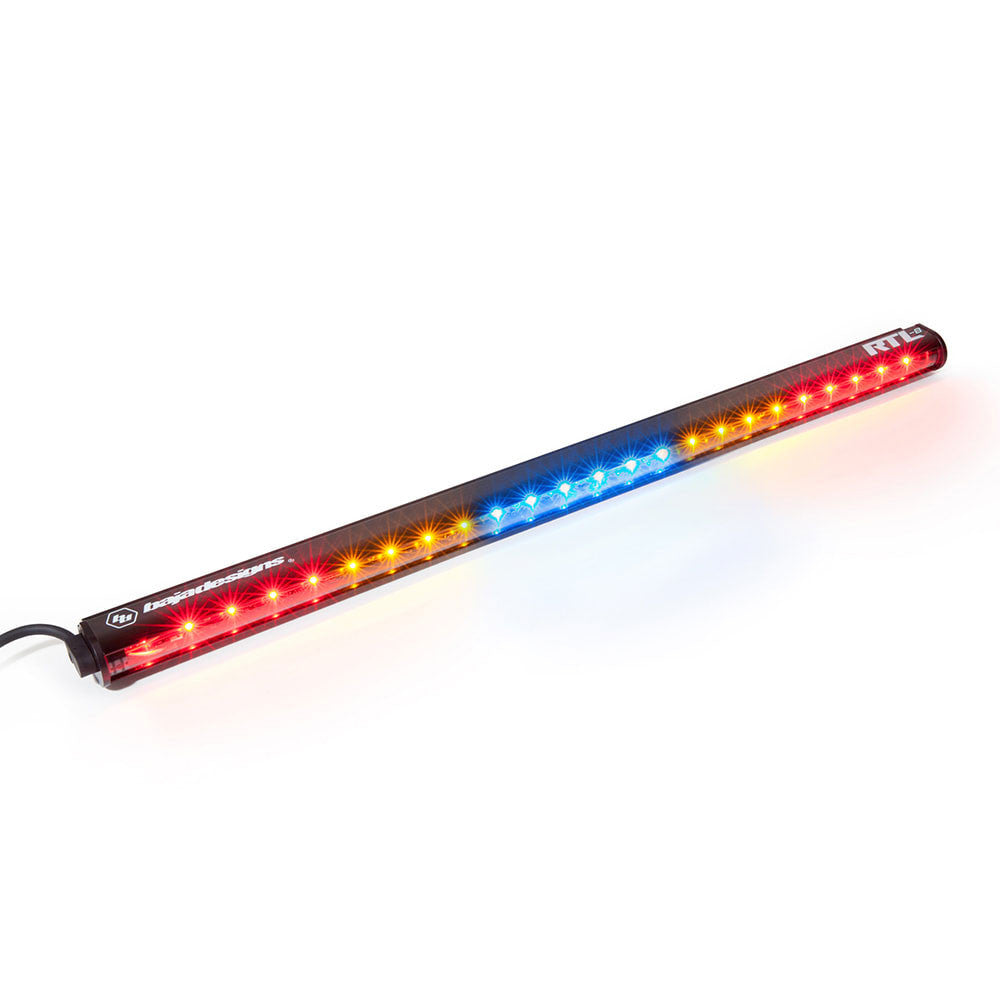

Baja Designs RTL LED Rear Light Bar | Universal

The Baja Designs RTL rear LED light bar provides red running and brake lighting with a selected center-light and amber-light configuration for off-road use.

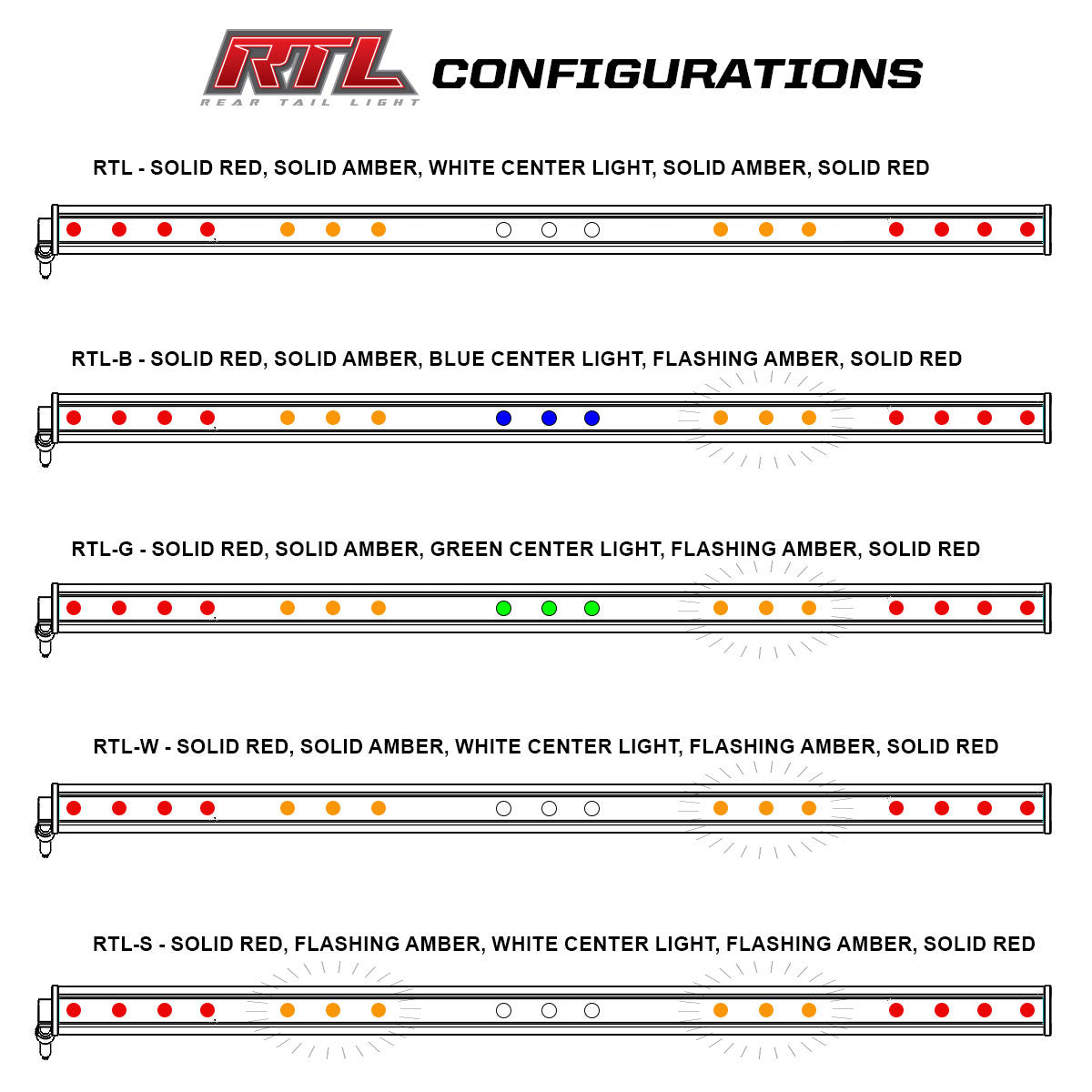

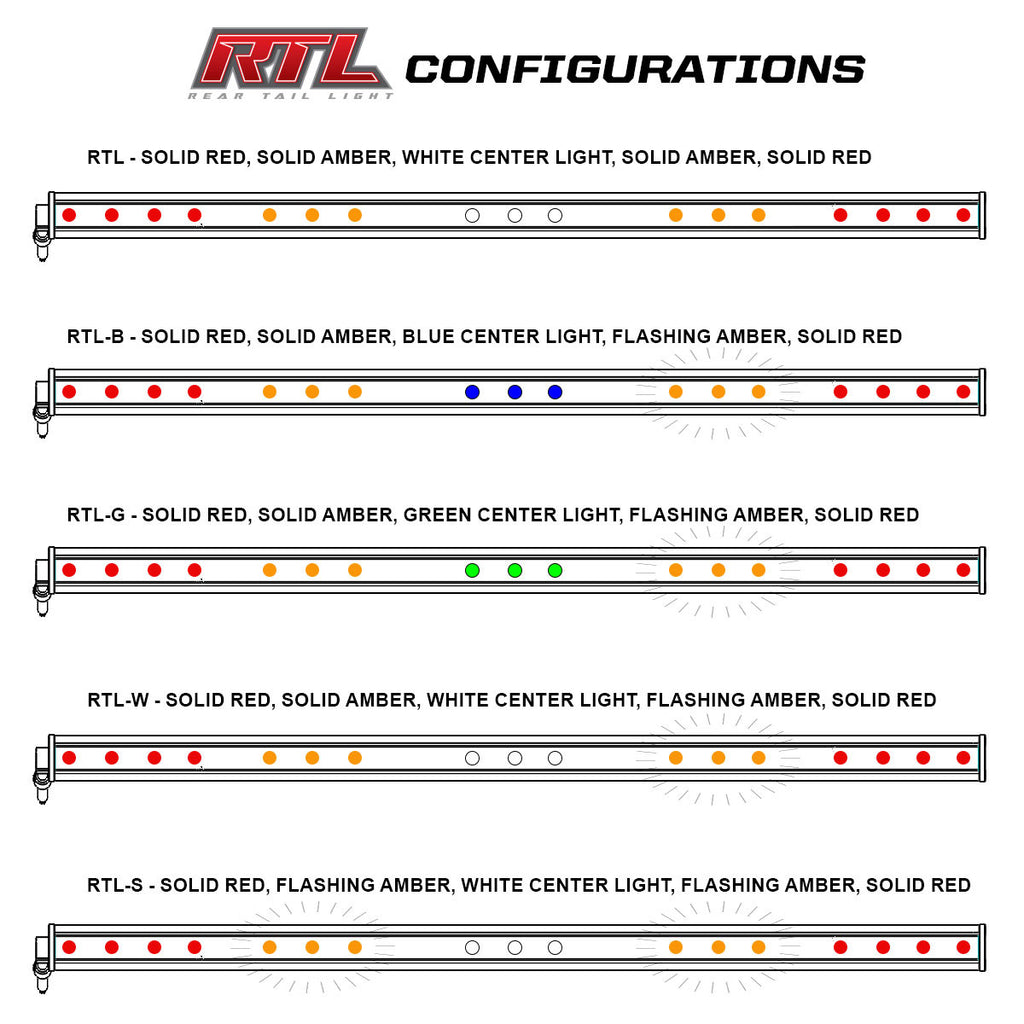

Light configurations

• RTL: solid red, solid amber, white center light, solid amber, solid red.
• RTL-B: solid red, solid amber, blue center light, flashing amber, solid red.
• RTL-G: solid red, solid amber, green center light, flashing amber, solid red.
• RTL-W: solid red, solid amber, white center light, flashing amber, solid red.
• RTL-B and RTL-G are for race-series-specific applications. Confirm the required light configuration with your race series.

Specifications

• Nominal bar size: 30 inches.
• Overall size: 32.125 × 1.5 × 2.15 inches; weight: 3.75 pounds.
• RTL and RTL-W: 30 watts for brake, 12 watts for running, and 18 watts for the white light.
• RTL-B and RTL-G: 28 watts for brake, 10 watts for running, and 19 watts for the center light.
• Black aircraft-grade aluminum housing with hard anodizing.
• Hardcoated polycarbonate lens; built-in overvoltage protection.
• IP69K water resistance.

What is included

One rear LED light bar in the selected configuration and stainless steel mounting hardware. A wiring harness is not included.

The manufacturer lists harness 640127 for automotive applications or harness 640116 for UTV applications. Sold separately.

Fitment and installation

Universal rear light accessory. Check mounting clearance, electrical connections, and the required control functions before installation.
