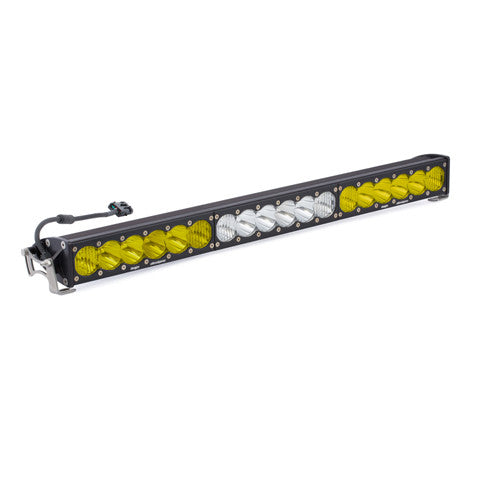

Baja Designs OnX6 Straight Dual Control LED Light Bar | Universal
30 Inch / Driving/Combo / Baja Amber/Clear
$1,202.95
Sale price
$1,202.95
Regular price
Skip to product information
Baja Designs OnX6 Straight Dual Control LED Light Bar | Universal
$1,202.95
Sale price
$1,202.95
Regular price
The Baja Designs OnX6 Straight Dual Control LED Light Bar provides adjustable off-road lighting in the lengths and lens configurations shown in the product options.
Specifications
- Available lengths: 30 Inch, 40 Inch, 50 Inch.
- Black aluminum housing.
- Hardcoated polycarbonate lens.
- Replaceable lenses and optics.
- Built-in overvoltage protection.
- Straight housing.
- 2.69-inch-high housing with a 4.29-inch depth.
- Driving/Combo pattern with Baja Amber/Clear lens sections.
- Separate power connections permit independent control of the inner and outer sections.
What is included
- One light bar in the selected configuration.
- Mounting brackets and hardware.
Installation and compatibility
A wiring harness is not included. Use harness 640119 for 30–50-inch OnX6 applications. Confirm mounting clearance and power capacity before installation. For off-road use.
Specifications by configuration
| SKU | Raw lumens | Watts | Amps | Length (in.) | Weight (lb.) |
|---|---|---|---|---|---|
| 463014 | 28,938 (High); 23,150 (Low) | Not supplied | Not supplied | 30 | 11.450 |
| 464014 | 39,220 (high); 32,760 (Low) | 340 (High); 284 (Low) | 26.8 (High); 22.4 (Low) | 40 | 15.05 |
| 465014 | 39,910 (high) | 346 (High) | 28.2 (High) | 50 | 18.65 |
Fitment
Universal fit within the equipment applications stated above. No vehicle-specific fitment is claimed.
