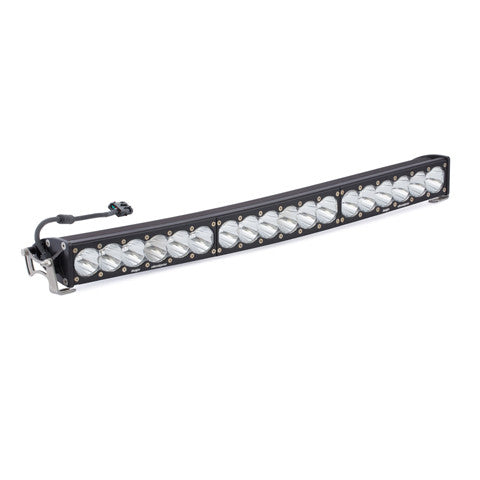

Baja Designs OnX6 Arc LED Light Bar | Universal
Spot / 30 Inch / Clear
$1,359.95
Sale price
$1,359.95
Regular price
Skip to product information
Baja Designs OnX6 Arc LED Light Bar | Universal
$1,359.95
Sale price
$1,359.95
Regular price
The Baja Designs OnX6 Arc LED Light Bar provides adjustable off-road lighting in the lengths and lens configurations shown in the product options.
Specifications
- Available lengths: 30 Inch, 40 Inch, 50 Inch.
- Black aluminum housing.
- Hardcoated polycarbonate lens.
- Replaceable lenses and optics.
- Built-in overvoltage protection.
- Arc housing.
- 2.69-inch-high housing with a 4.29-inch depth.
- The 50-inch version is pre-dimmed and has no high/low switching function.
What is included
- One light bar in the selected configuration.
- Mounting brackets and hardware.
Installation and compatibility
A wiring harness is not included. Use harness 640119 for 30–50-inch OnX6 applications. Confirm mounting clearance and power capacity before installation. For off-road use.
Specifications by configuration
| SKU | Raw lumens | Watts | Amps | Length (in.) | Weight (lb.) |
|---|---|---|---|---|---|
| 525001 | 39,910 (High) | 346 (High) | 28.2 (High) | 50 | 18.65 |
| 523001 | 32,070 (High); 25,610 (Low) | 278 (High); 222 (Low) | 21.7 (High); 17.1 (Low) | 30 | 11.45 |
| 523003 | 32,070 (High); 25,610 (Low) | 278 (High); 222 (Low) | 21.7 (High); 17.1 (Low) | 30 | 11.45 |
| 523004 | 32,070 (High); 25,610 (Low) | 278 (High); 222 (Low) | 21.7 (High); 17.1 (Low) | 30 | 11.45 |
| 524001 | 39,220 (High); 32,760 (Low) | 340 (High); 284 (Low) | 26.8 (High); 22.4 (Low) | 40 | 15.05 |
| 524003 | 39,220 (High); 32,760 (Low) | 340 (High); 284 (Low) | 26.8 (High); 22.4 (Low) | 40 | 15.05 |
| 524004 | 39,220 (High); 32,760 (Low) | 340 (High); 284 (Low) | 26.8 (High); 22.4 (Low) | 40 | 15.05 |
| 525003 | 39,910 (High) | 346 (High) | 28.2 (High) | 50 | 18.65 |
| 525004 | 39,910 (High) | 346 (High) | 28.2 (High) | 50 | 18.65 |
Fitment
Universal fit within the equipment applications stated above. No vehicle-specific fitment is claimed.
