Baja Designs LP4 Pro LED Auxiliary Light Pod Pair | Universal

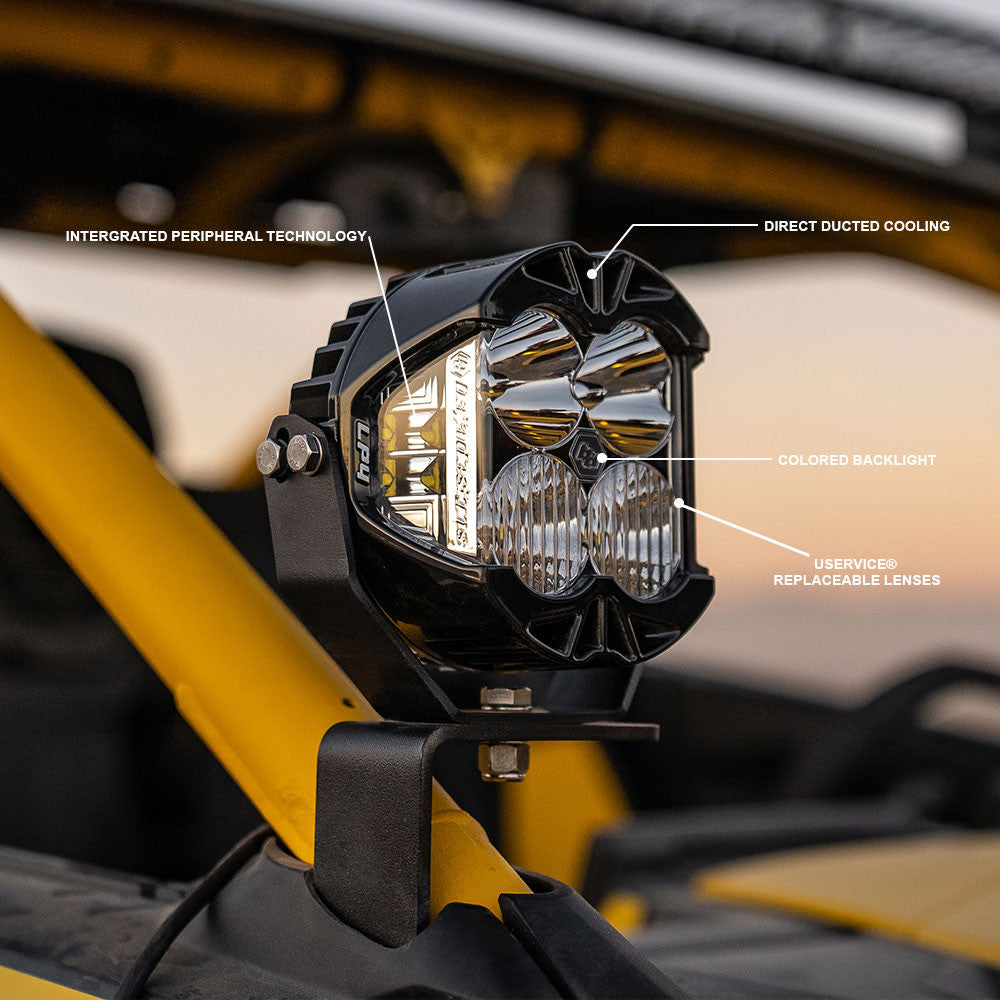

The Baja Designs LP4 Pro LED light pair provides forward and peripheral lighting for off-road use. Each light uses Integrated Peripheral Technology (IPT) and Direct Ducted Cooling (DDC).

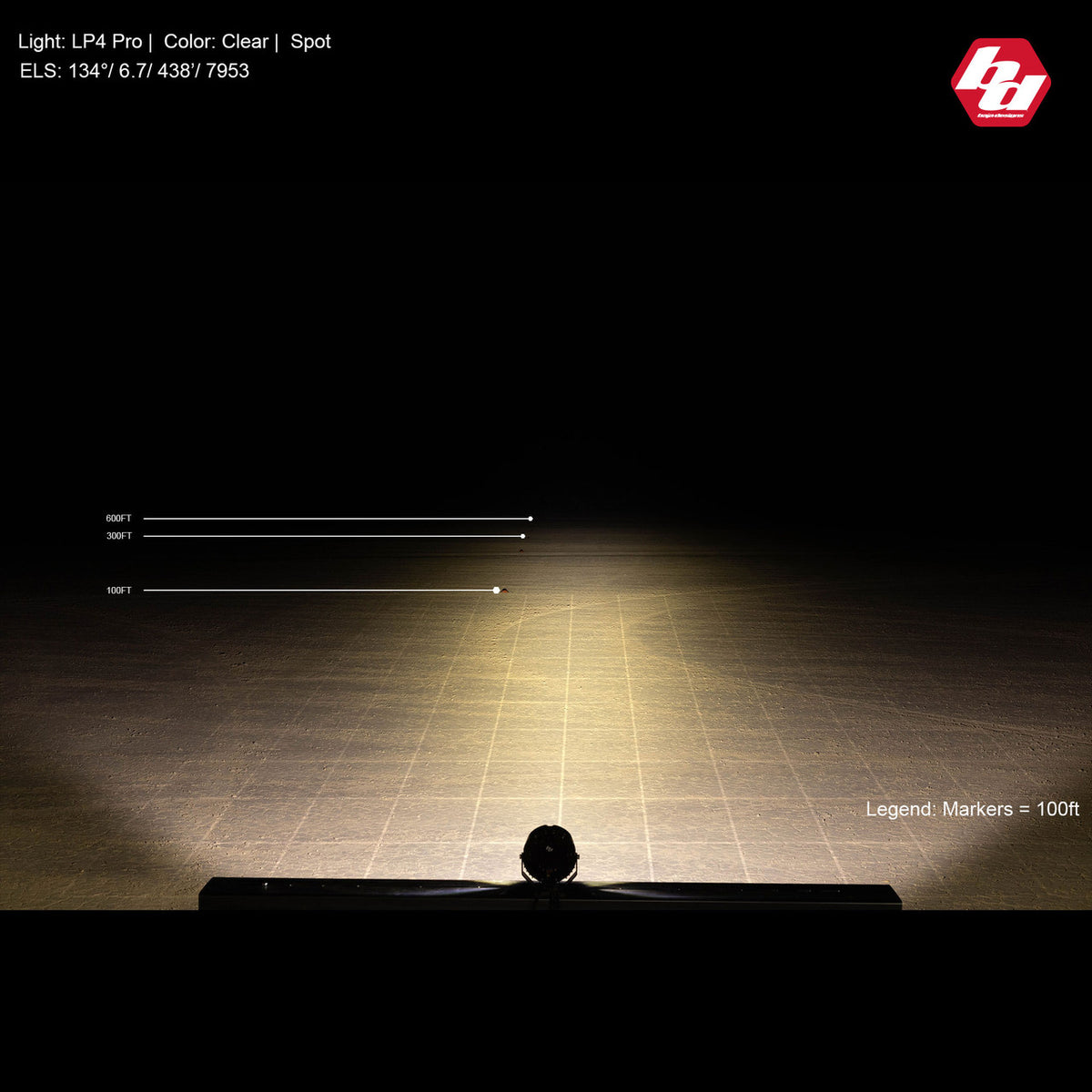

Light patterns, lenses, and backlights

• Spot / Clear is available with an Amber backlight.

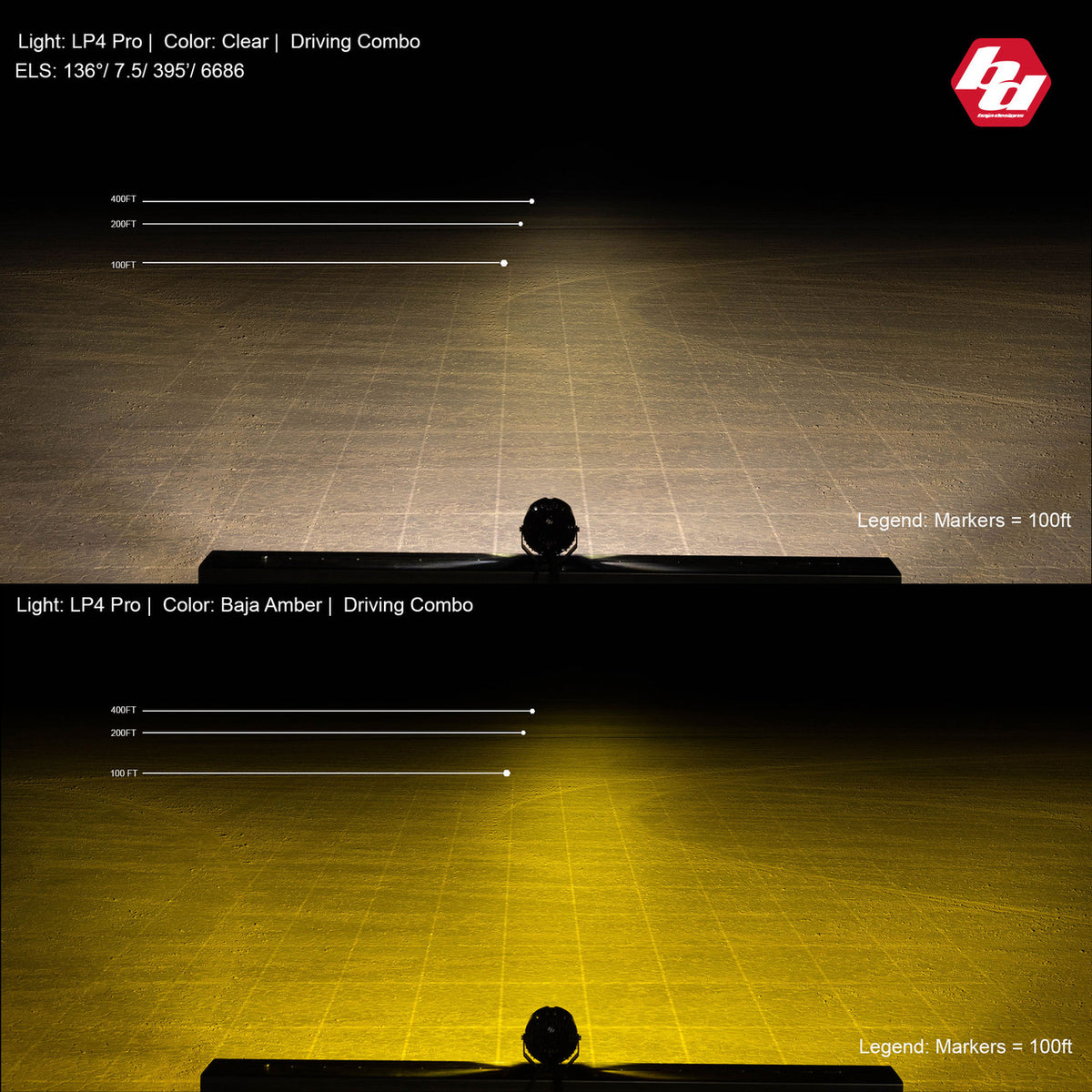

• Driving/Combo / Clear is available with Amber, Red, Blue, or Green backlights.
• Driving/Combo / Baja Amber is available with an Amber backlight.

Features

• 8,857 total lumens per light: 6,885 forward-projecting lumens and 1,972 peripheral lumens.
• 200-degree spread of usable light.
• DDC channels move air over the rear heat sinks.
• Replaceable lenses and optics.
• Hardcoated polycarbonate lenses and powder-coated cast aluminum housing.
• IP69K water resistance and built-in overvoltage protection.

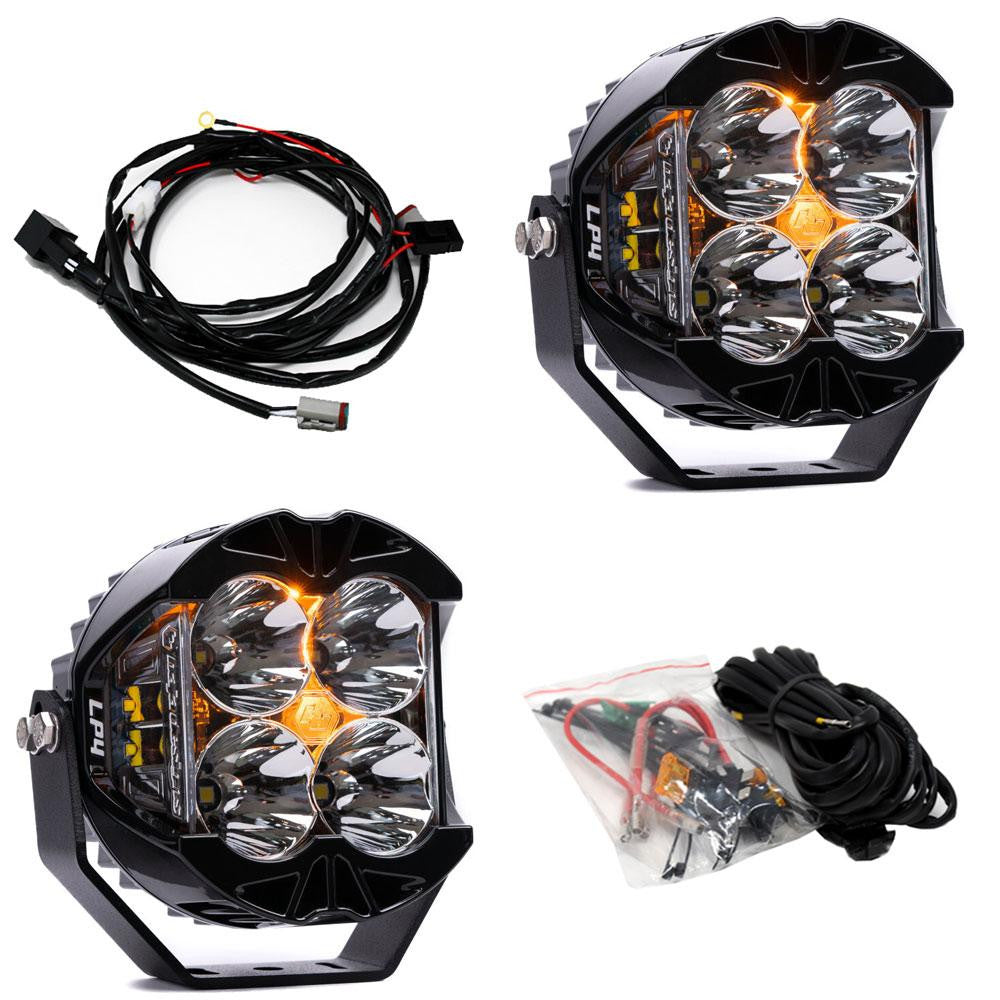

What is included

• Two LP4 Pro LED light pods in the selected configuration.
• Wiring harness.
• Stainless steel mounting hardware.

Specifications

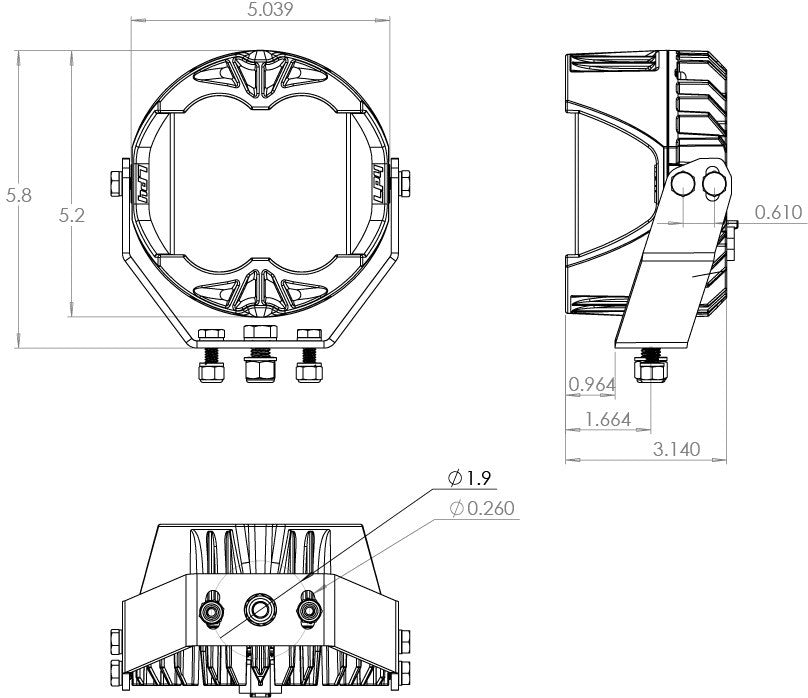

• Per-light dimensions: 5.10 inches long × 5.10 inches high × 3.20 inches deep.
• Per-light weight: 2.80 lb.

Backlight use restriction

Red, Blue, and Green backlights are for exhibition use only. Do not use these backlights on public roads.

Fitment and installation

Universal auxiliary lighting for off-road use. Check the mounting location, wiring length, and electrical connections before installation. Vehicle-specific mounts are not included.
