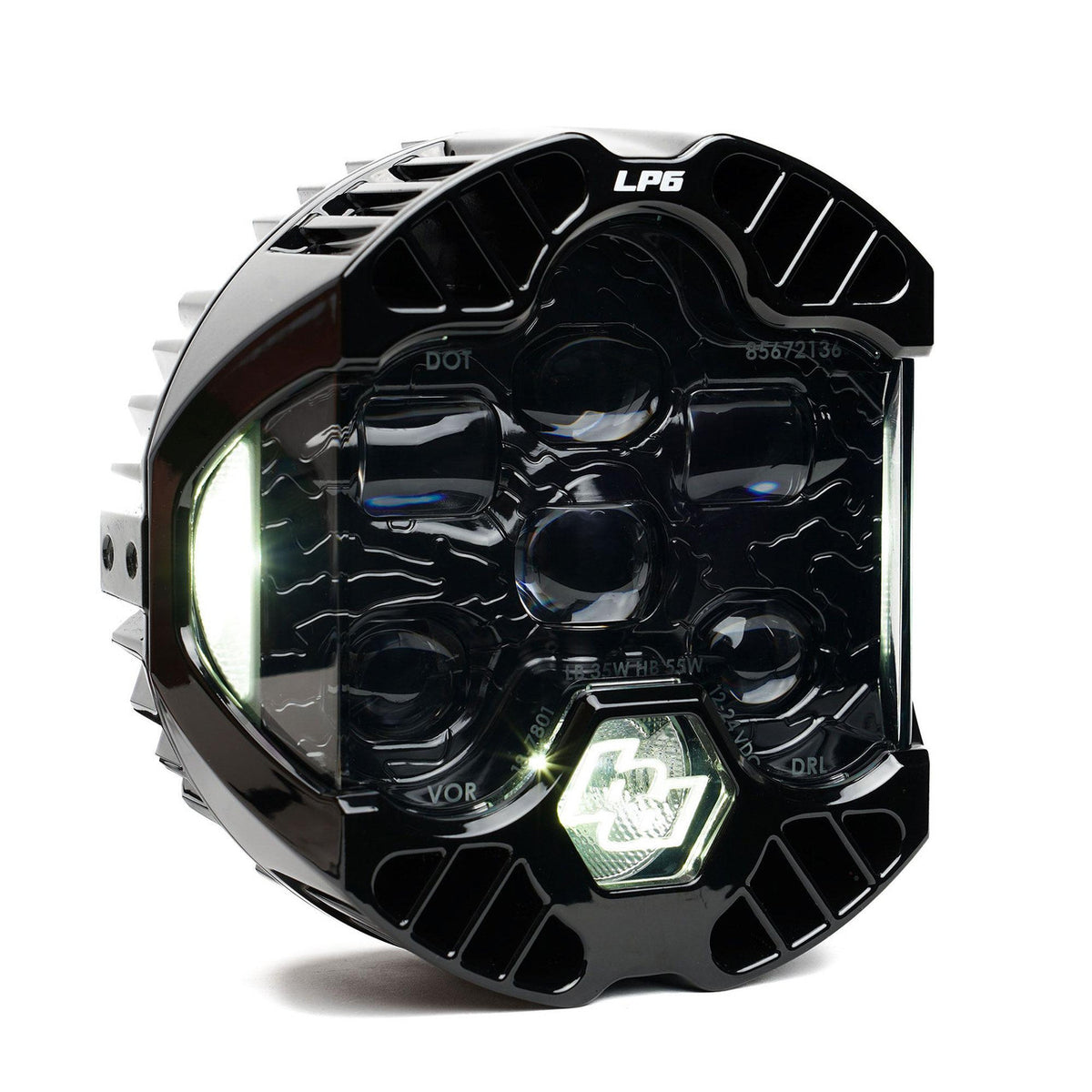

Baja Designs DOT LP6 LED Headlight Replacement | Universal

The Baja Designs DOT LP6 LED headlight replacement provides separate low and high beams with a choice of White or Amber daytime running lights.

Specifications

• Low beam per lamp: 3,480 raw lumens, 26W and 1.8A at 13.8V.
• High beam per lamp: 5,280 raw lumens, 40W and 2.8A at 13.8V.
• Daytime running light per lamp: 5W and 0.4A.
• Operating voltage: 10.5–32V.
• Lamp dimensions: 6.5 × 6.5 × 3.2 inches.
• Manufacturer states compliance with FMVSS 108 for automotive and motorcycle headlight applications.

What is included

• One DOT LP6 headlight with the selected DRL color.
• Mounting hardware.

Installation and compatibility

Wiring harness and mounting brackets are sold separately. Vehicle harness 640172 is not for motorcycles. Universal brackets are available in LP6 parts bag 65-0286. Confirm the mounting system and electrical connections for your application. The DOT LP6 has no user-serviceable optics. Return it to Baja Designs for repairs; opening the lamp voids its warranty.

Fitment

Universal fit within the equipment applications stated above. No vehicle-specific fitment is claimed.
