1996-2002 3rd Gen 4Runner Panhard Correction Kits (PCK)

Lift a 3rd Gen 4Runner and the Panhard bar ends up working at an angle it was never designed for — the axle shifts off-center and handling suffers. The EimKeith Panhard Correction Kit (PCK) is the weld-on fix: it returns the Panhard bar to horizontal per the original design, eliminates the need for an aftermarket adjustable Panhard bar to recenter the axle, and in most cases (up to 4" of lift) actually raises the roll center for improved handling. A 4–4.5" lift maintains the roll center you’d get from an adjustable Panhard.

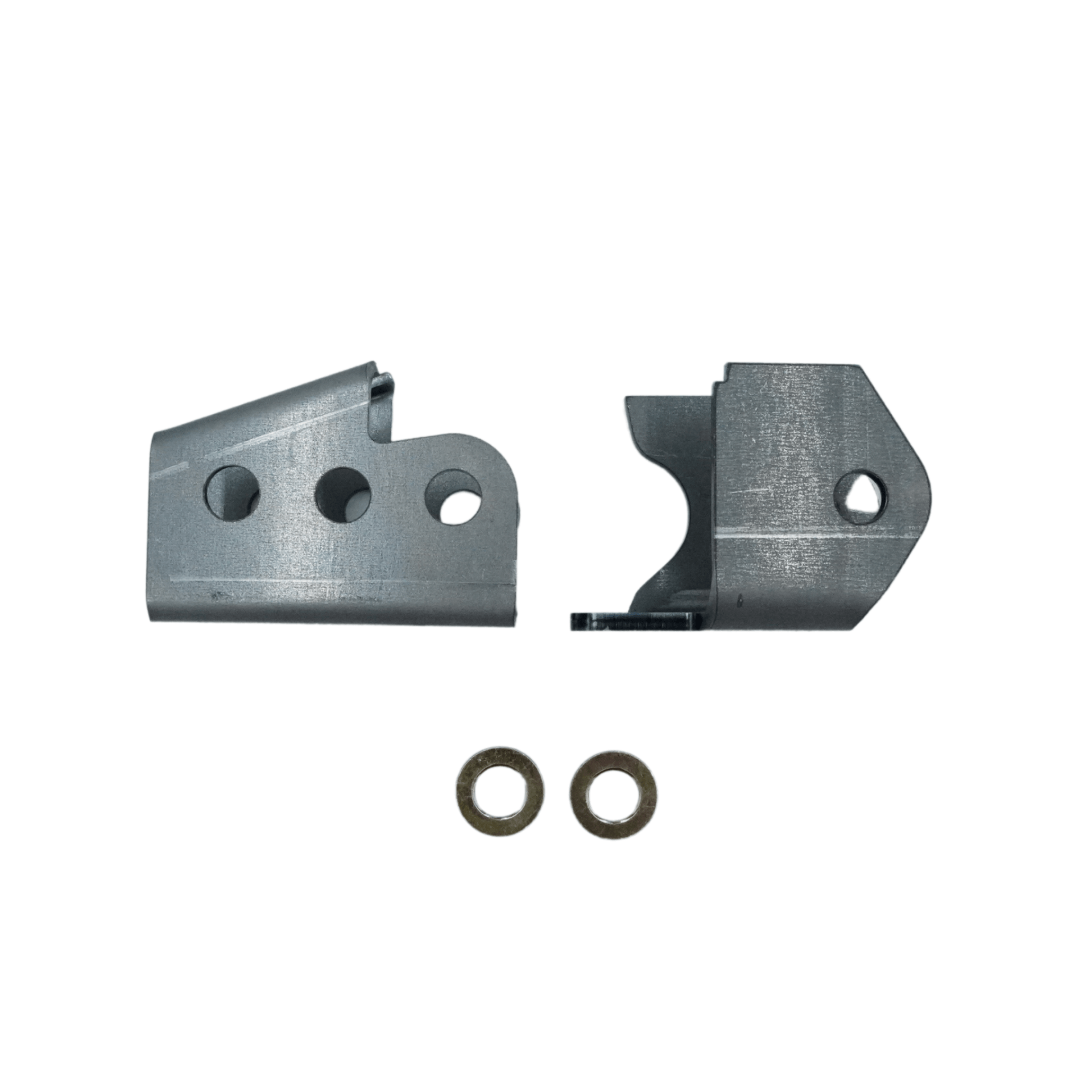

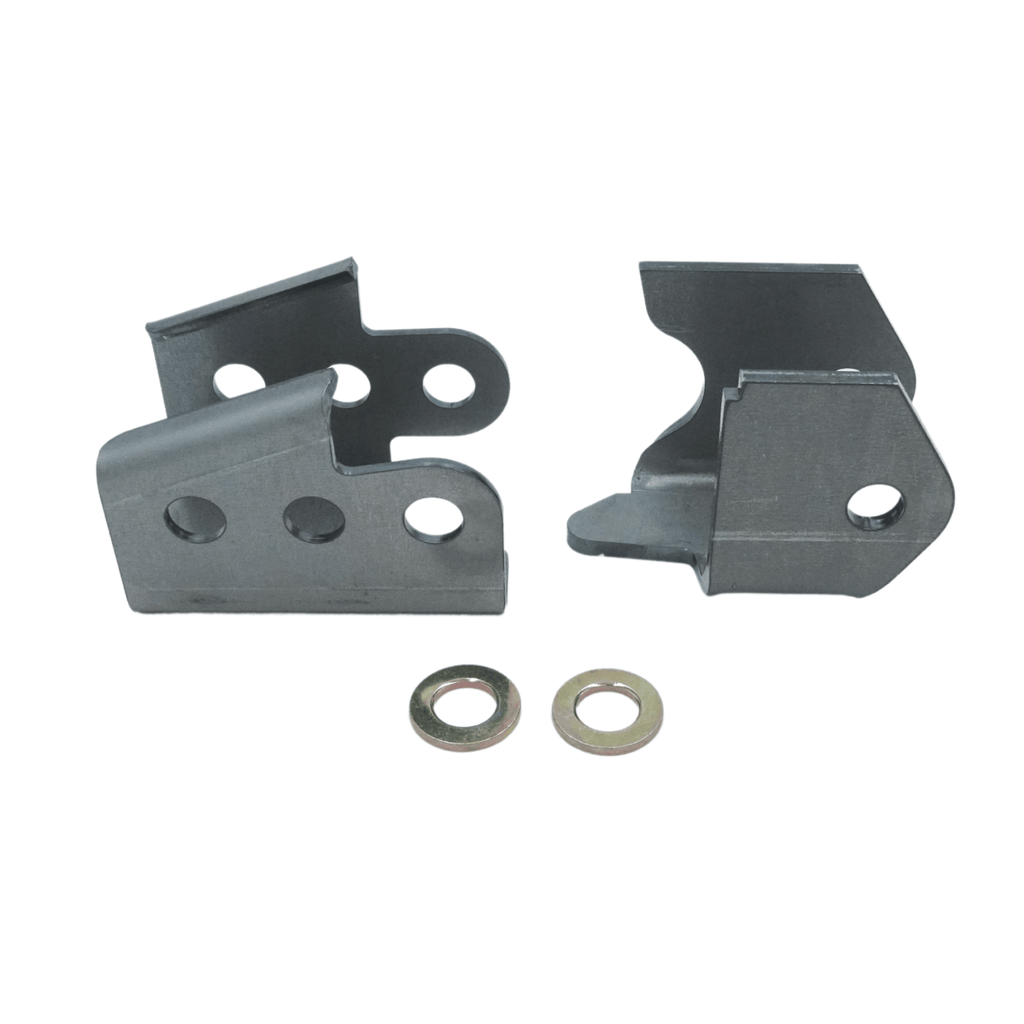

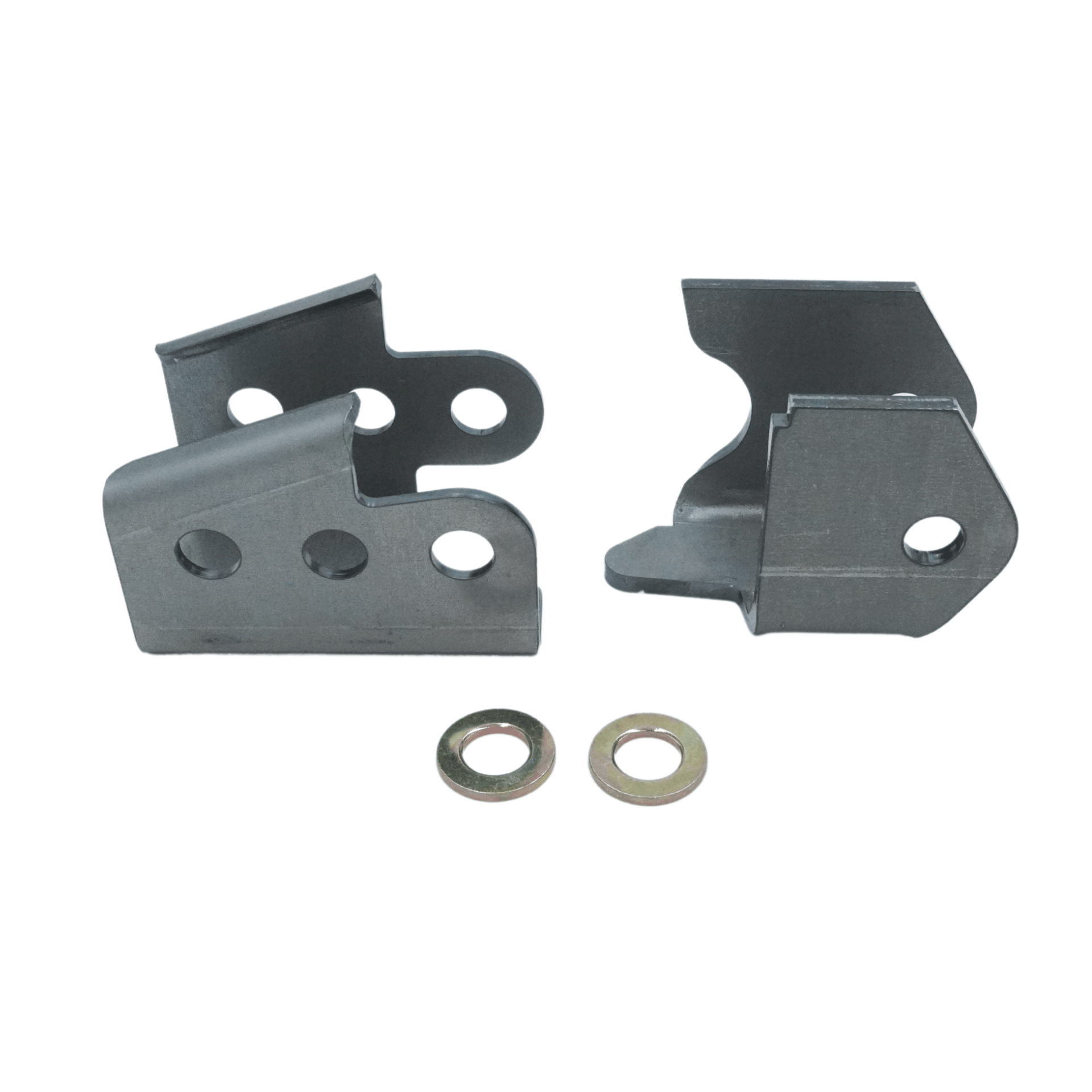

• Axle-end lift bracket — cut from 3/16" plate to match the factory mount thickness and contoured to align to the existing axle mount with minimal fitting. Raises the axle end of the Panhard bar 2" on its own, with no frame interference at full flex with factory bump stops in place.
• Frame-side drop bracket — selectable for 2", 3", and 4" lift heights, cut from .120" plate to match the factory mount. Slide-over alignment using the factory pivot bolt hole for proper location, and includes two 3mm hardened steel spacers to retain the factory mount inner diameter.

Welding required. Designed and built by EimKeith.
