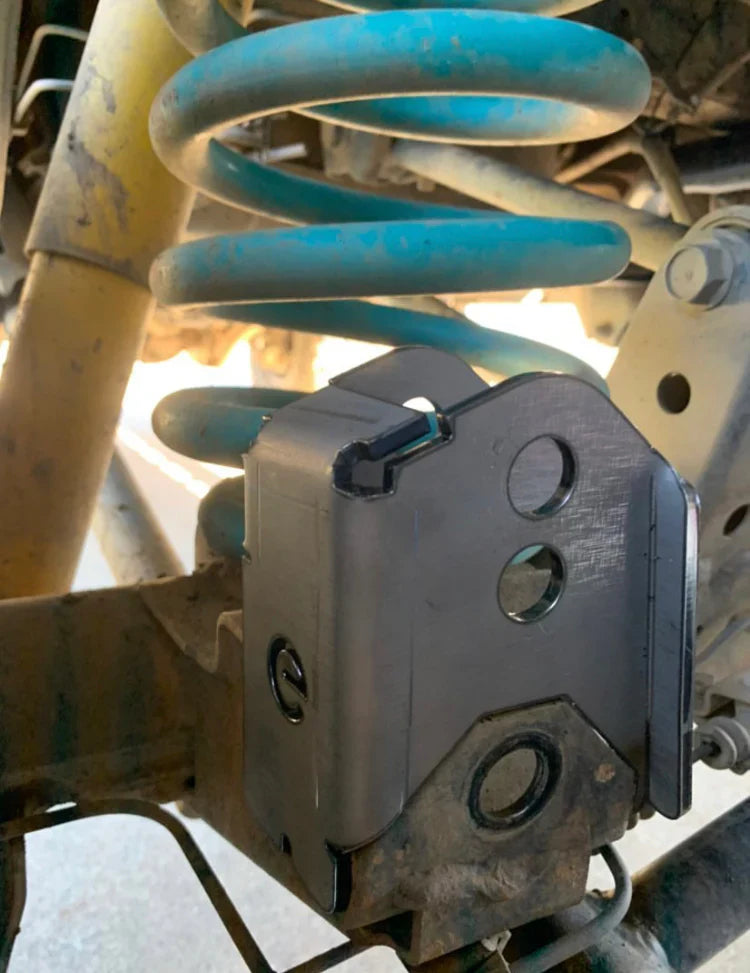

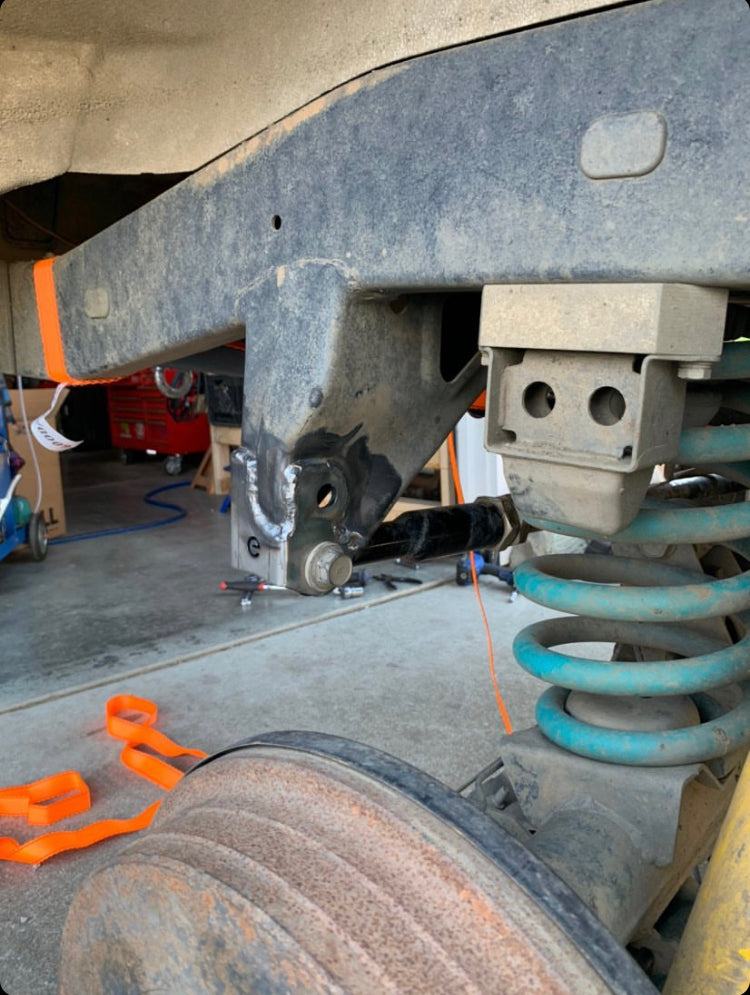

1990-1997 80 Series Land Cruiser Panhard Correction Kit (PCK)®

The Original PCK®. Your “lift height” is rarely the advertised number — static ride height moves with the bumpers, drawers, and load you carry. That’s why the EimKeith 80 Series PCK® is built around multiple bar-mounting positions, so the correction adapts as your lift or load changes:

• 50mm / 2" — lower hole on the axle bracket, stock hole on the frame side
• 75mm / 3" — upper hole on the axle bracket, stock hole on the frame side
• 100mm / 4" — lower hole on the axle bracket, new hole in the frame-side bracket
• 125mm / 5" — upper hole on the axle bracket, new hole in the frame-side bracket

Includes:

• (1) Frame Side Drop Bracket
• (1) Axle Side Lift Bracket
• (1) EimKeith Logo Decal

Before ordering: check which axle is in your FJ80/FZJ80. Look at the forward face (toward the front of the truck) of your Panhard mount — the upper edge will be either flat or V-shaped. Select the kit that matches your axle.

Welding required. Designed and built by EimKeith.
