2003-2024 4Runner Panhard Correction Kits (PCK)

Lift a solid-rear-axle 4Runner and the Panhard bar ends up working at an angle it was never designed for — the axle shifts off-center and handling suffers. The EimKeith Panhard Correction Kit (PCK) is the weld-on fix for 2003–2024 4th and 5th Gen 4Runners: it returns the Panhard bar to horizontal per the original design, eliminates the need for an aftermarket adjustable Panhard bar to recenter the axle, and in most cases (up to 4" of lift) raises the roll center for improved handling. A 4–4.5" lift maintains the roll center you’d get from an adjustable Panhard.

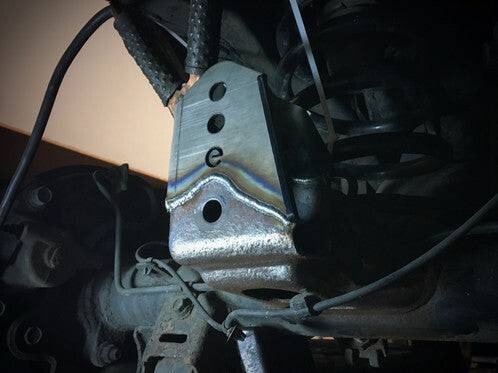

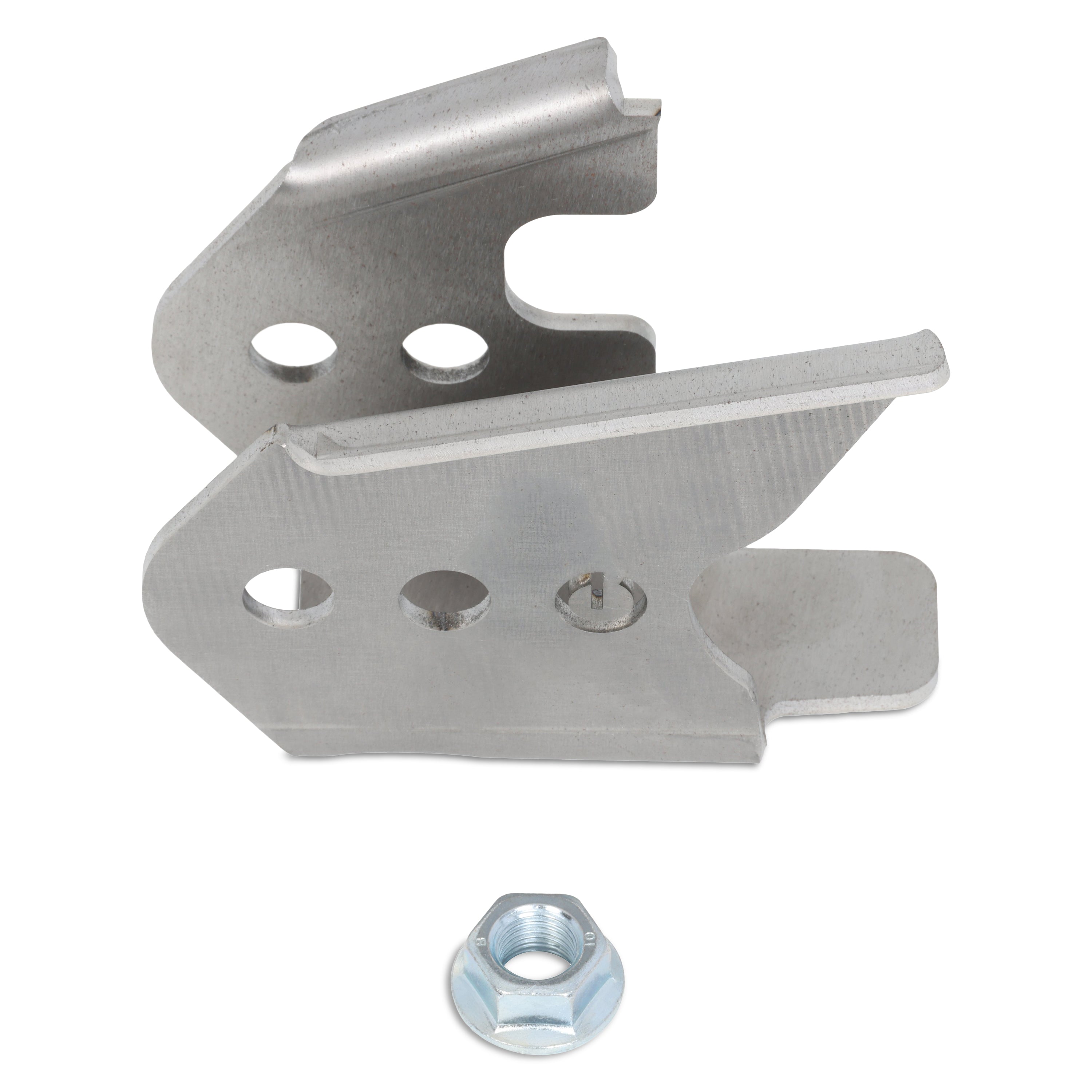

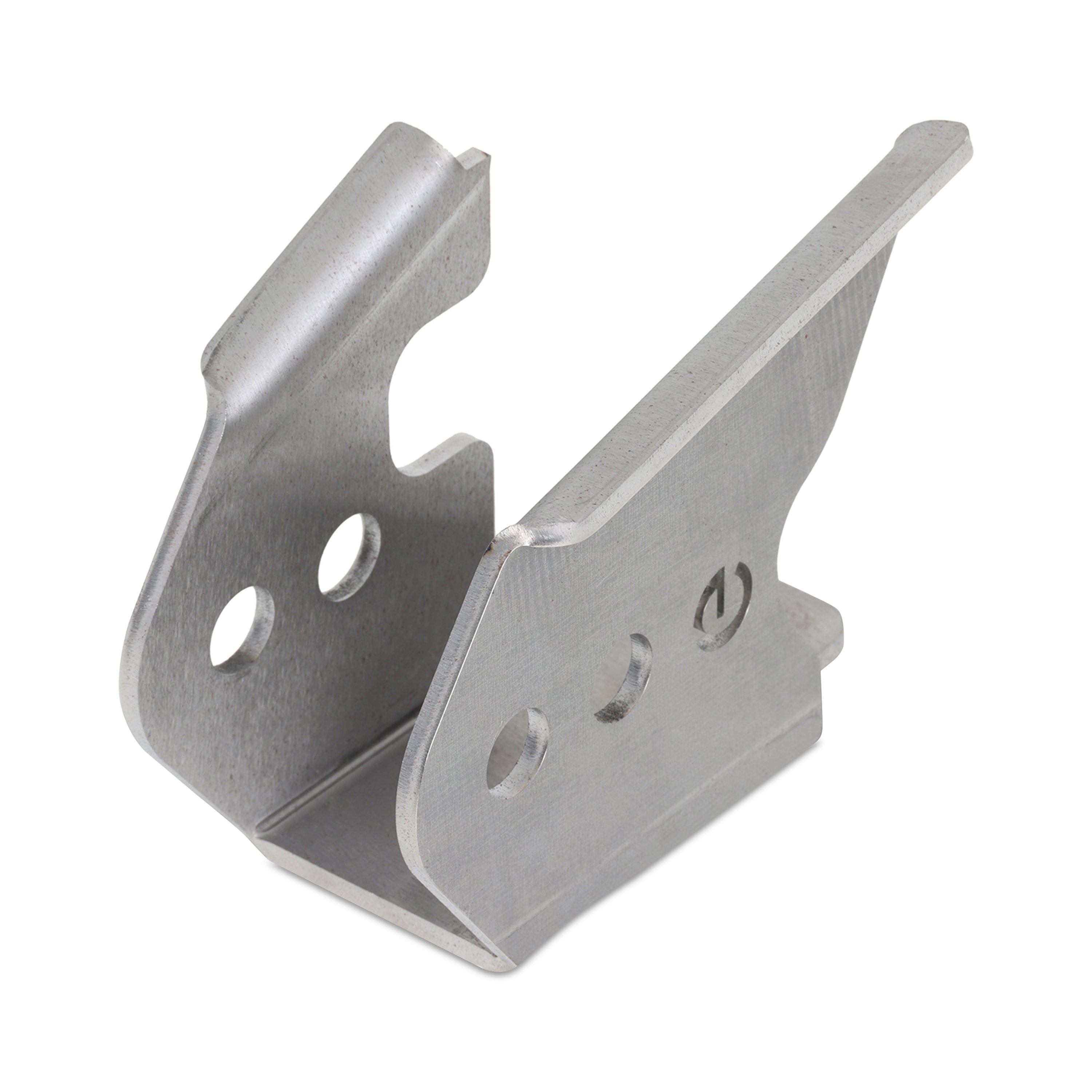

• Axle-end lift bracket cut from 3/16" plate to match the factory mount thickness
• Raises the axle end of the Panhard bar 2" on its own, with no frame interference at full flex with factory bump stops in place
• Contoured for slide-over alignment with the existing mount, using the factory pivot bolt hole for proper location — minimal fitting

Welding required. Designed and built by EimKeith.
